24V Skyline track light flexible tension cable surface mounted track light ultra thin rail track lighting

Description

R18 Tension Cable Track Light Series

In order to renovate and not destroy the original appearance of the house, this skyline track light is a very good choice, easy to install and easy maintenance. It is made up of a 1.5² rubber conductor cable: To put each beam of light the line becomes a redo extension, with indirect permutations and continuous. It can also be suspended between 2 walls; different the combination of light modules has special decorative properties, turn into luminous paths to decorate the room and serve as a base and key lighting systems: Spotlights,linear spotlights and hanging lights come from the same family of products. The black surface track system is light, communication, decorative elements, interchangeability. This is a evolution and revolution for track light.

What’s more, it is 24V, supports dimming with DALI/TRIAC/0-10V, allowing the lights to seamlessly blend with your interior decoration.

Quick Detail

Flexible track light

Easy installation

Lamp install at anywhere

Skyline track light

Flexible track light

24V track light

Surface mounted track ligh

Application

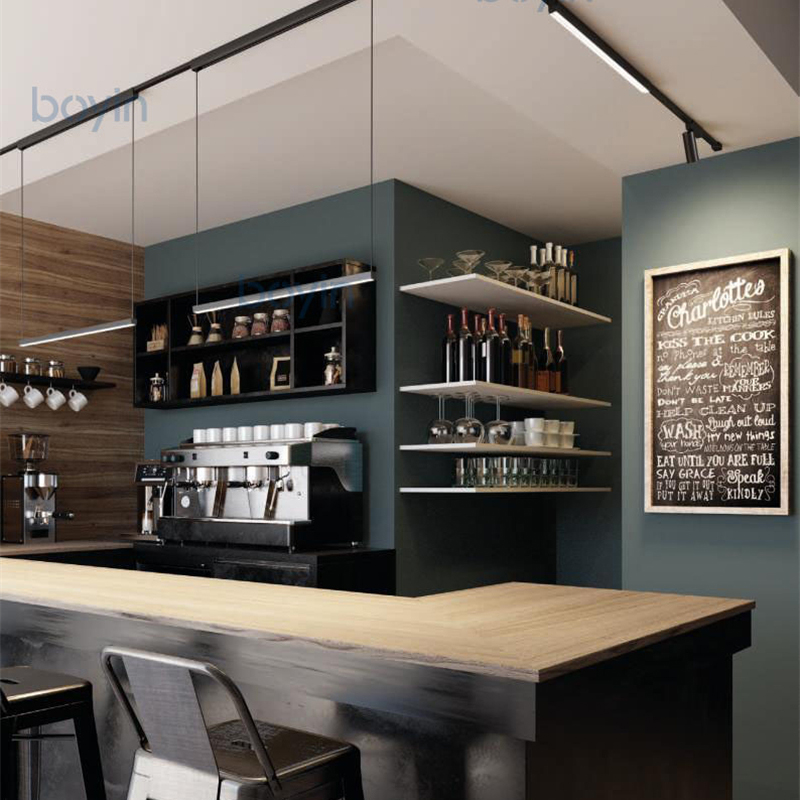

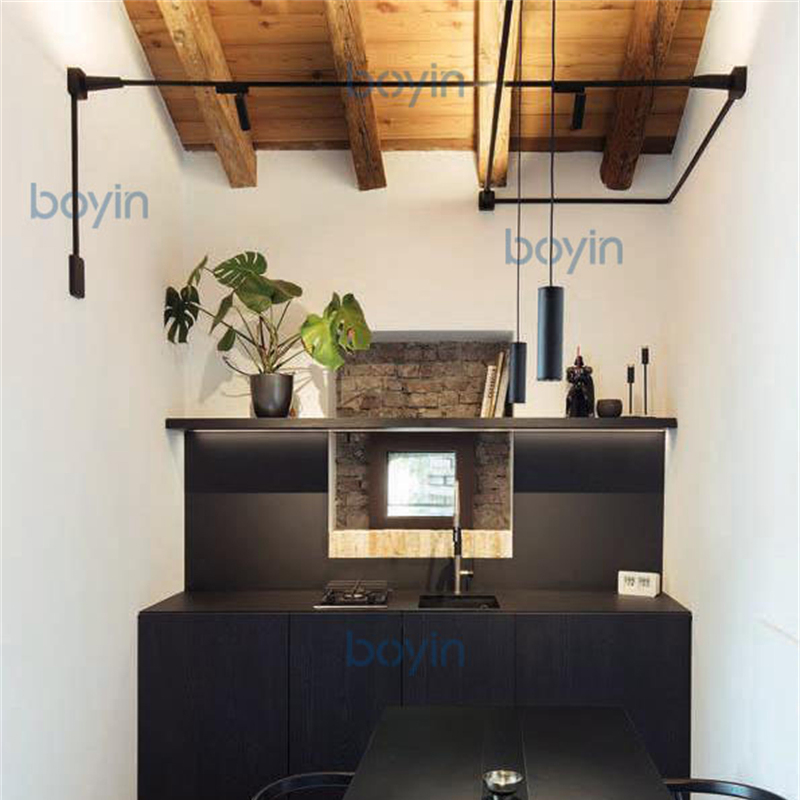

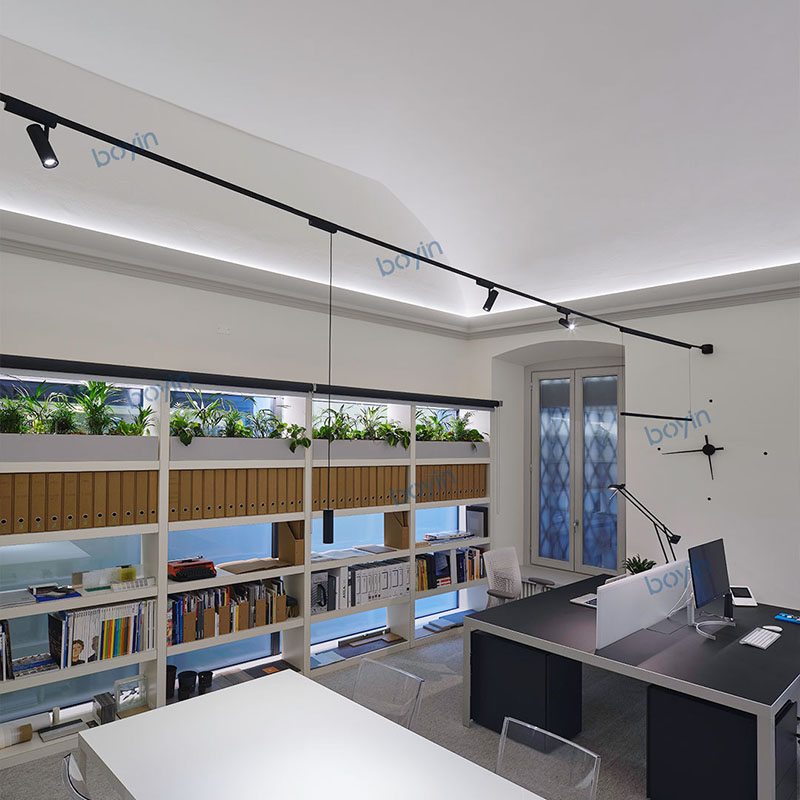

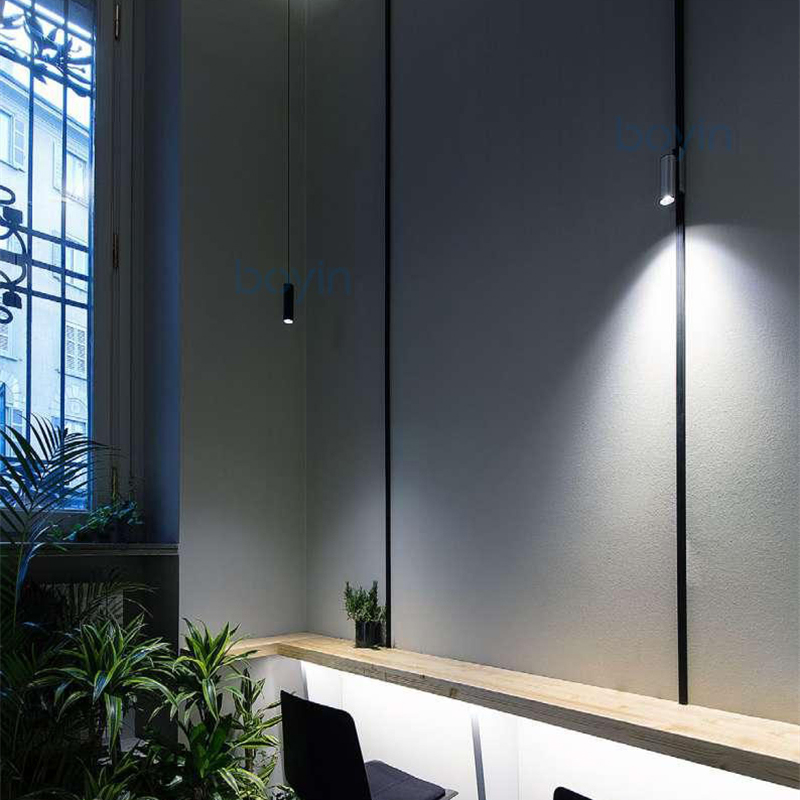

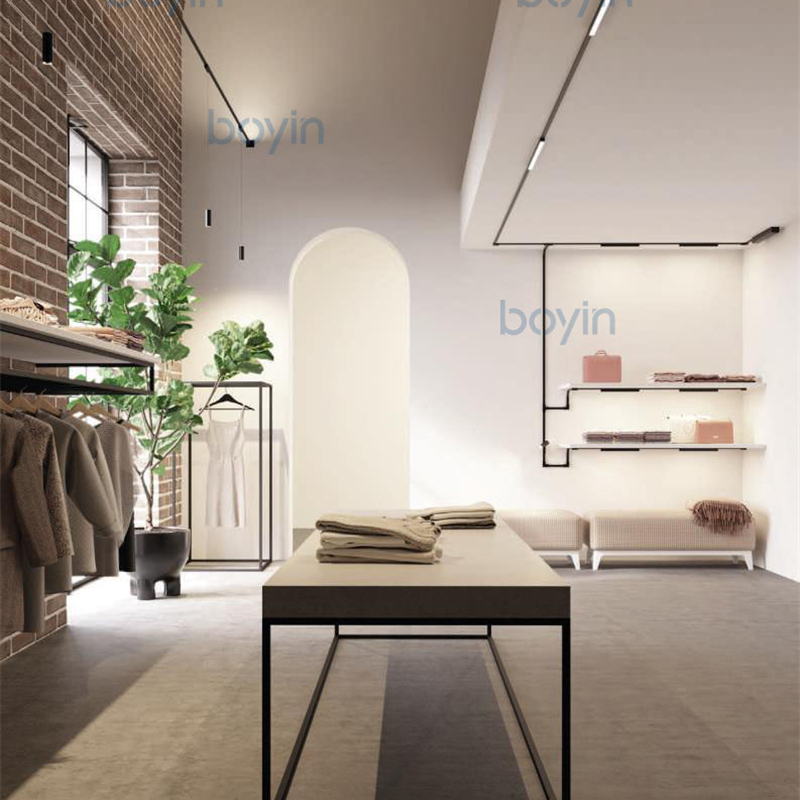

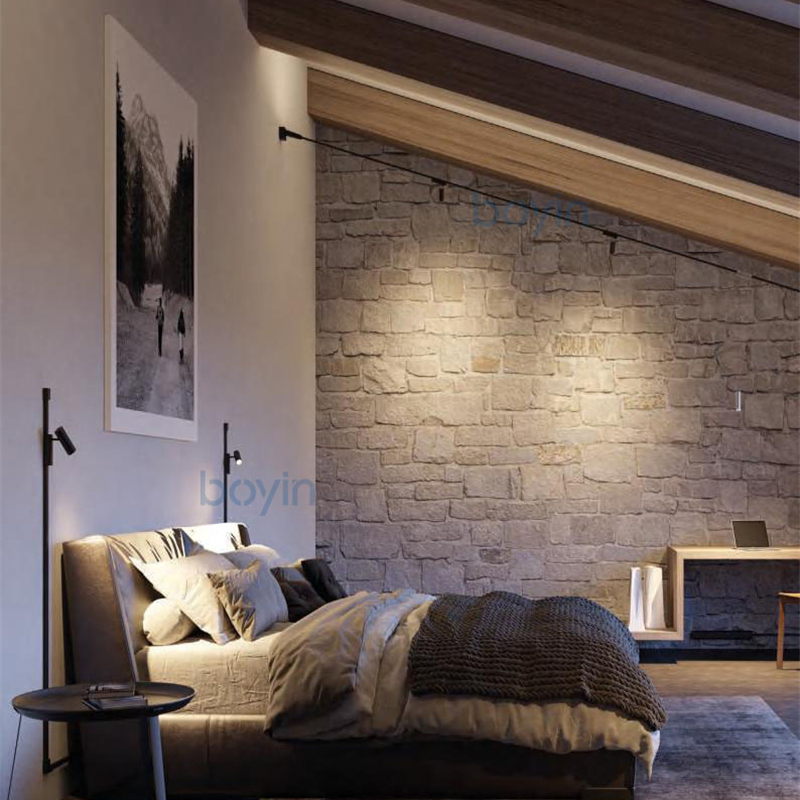

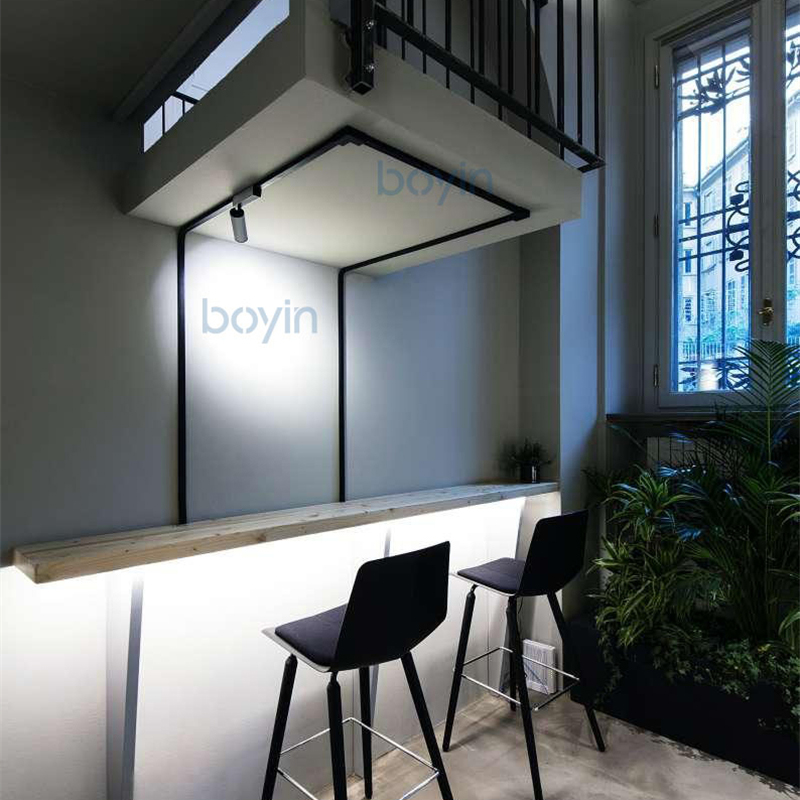

Restaurant/Office/Studio/Library/Home/Villa/Retail Shop/Salon room /renovation decoration /Showroom. etc

Specifications

PHOTO	MODEL	POWER	SIZE	CCT	CRI	COLOR	BEAM	LED CHIP	REMARK
	R18-C0218-6A	4W	133*26.5*31.5	3000K 4000K	>80	black	28	OSRAM	dimmable
	R18-C0218-12A	8W	263*26.5*31.5	3000K 4000K	>80	black	28	OSRAM	dimmable
	R18-C0218-18A	12W	393*26.5*31.5	3000K 4000K	>80	black	28	OSRAM	dimmable
	R18-C0218-24A	16W	523*26.5*31.5	3000K 4000K	>80	black	28	OSRAM	dimmable
	R18-C0218-260A	8W	263*26.5*31.5	3000K 4000K	>80	black	110	OSRAM	dimmable
	R18-C0218-390A	12W	393*26.5*31.5	3000K 4000K	>80	black	110	OSRAM	dimmable
	R18-C0218-520A	16W	523*26.5*31.5	3000K 4000K	>80	black	110	OSRAM	dimmable
	R18-C0216-6A	4W	133*26.5*122	3000K 4000K	>80	black	28	OSRAM	dimmable
	R18-C0216-12A	8W	263*26.5*122	3000K 4000K	>80	black	28	OSRAM	dimmable
	R18-C0216-260A	8W	263*26.5*122	3000K 4000K	>80	black	110	OSRAM	dimmable
	R18-C0220-5A	5W	Φ32*78	3000K 4000K	>80	black	24	OSRAM	dimmable
	R18-C0220-10A	10W	Φ50*105	3000K 4000K	>80	black	24	OSRAM	dimmable
	R18-C0221-520A	16W	523*19*24 suspension wire800MM	3000K 4000K	>80	black	110	OSRAM	dimmable
	R18-C0221-24A	16W	523*19*24 suspension wire800MM	3000K 4000K	>80	black	28	OSRAM	dimmable
	R18-C0221-5A	5W	Φ32*78 suspension wire800MM	3000K 4000K	>80	black	24	Luminus	dimmable
	R18-C0221-5B	5W	Φ120*203 suspension wire800MM	3000K 4000K	>80	black	360	OSRAM	dimmable
	R18-C0221-10A	10W	Φ50*105 suspension wire800MM	3000K 4000K	>80	black	24	Luminus	dimmable
	R18-C0221-10B	10W	Φ160*35 suspension wire800MM	3000K 4000K	>80	black	110	Luminus	dimmable
	R18-C0222-1m	6w	1m	3000K 4000K	>80				dimmable
	R18-C0222-2m	12w	2m	3000K 4000K	>80				dimmable
	R18-power box	120W	380*58*45		/	black	/	philips
	R18-power box	180W	380*58*45		/	black	/	philips
	R18-junction box	/	119*88*20		/	black	/	/
	R18-rail end cap	/	37*24*18	/	/	black	/	/
	R18-rail L corner	/	48*48*18	/	/	black	/	/
	R18-rail T corner	/	71*48*18	/	/	black	/	/
	R18-rail cross corner	/	71*71*18	/	/	black	/	/
	R18-connect head	/	76*76*155	/	/	black	/	/
	R18 alu fixtion	/	1000*11*8	/	/	black	/	/
	R18 power cable	6 meter /reel	6000*18*11	/	/	black	/	/	without R18 fixtgion
	R18 power cable	12 meter /reel	12000*18*11	/	/	black	/	/	without R18 fixtgion
	R18-Secant line rule	option	265*24*9	/	/	stainless steel sheet	/	/
	R18-angle rule	option	80*80*1.5	/	/	stainless steel sheet	/	/

Competitive Advantage

Flexible rail

24V dimming track light

Lights in stock, fast delivery in 2 weeks

Rail can be cut into any length

Easy installation

Free placement of luminaires
