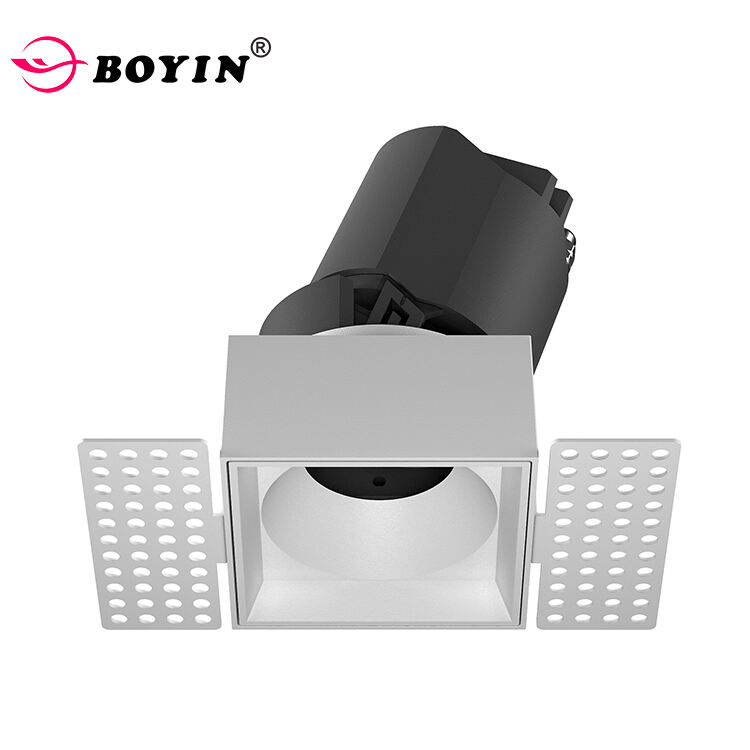

LED wall washer downlight trimless spotlight, katawan 355° maaaring lumipat, maramihang modular na disenyo, libreng kombinasyon ng frame at reflector cup, anti-glare at built-in downlight.
| Lugar ng Pinagmulan | Tsina |
| Pangalan ng Tatak | Boyin |
| Pangalan ng produkto | Ilaw sa Pader na Pababa |
| Model Number | BG-WF323-1, BG-WF324-1, BG-WF325-1 |
| Materyal | Aluminum |
| Boltahe ng Input | AC 85-265V |
| IP Rated | IP20 |
| Haba ng Buhay | 30000-50000 Oras |
| Kung magdim o hindi | Nakapasok sa kagustuhan |
| Paraan ng pag-install | Naka-recess |
| Sertipikasyon | CE, ROHS, CB, SASO, SAA, RCM, UL, ENEC, EMC, EAC |
| Mga Detalye ng Pakete | 20/30/50BILANG per kartera |
| Panahon ng Pagpapadala | 7-15 Araw |
| Kakayahang Suplay | 10000pcs/month |
| Garantiya | 3-5 Taon |
LED wall washer downlight trimless spotlight, katawan 355° maaaring lumipat, maramihang modular na disenyo, libreng kombinasyon ng frame at reflector cup, anti-glare at built-in downlight.

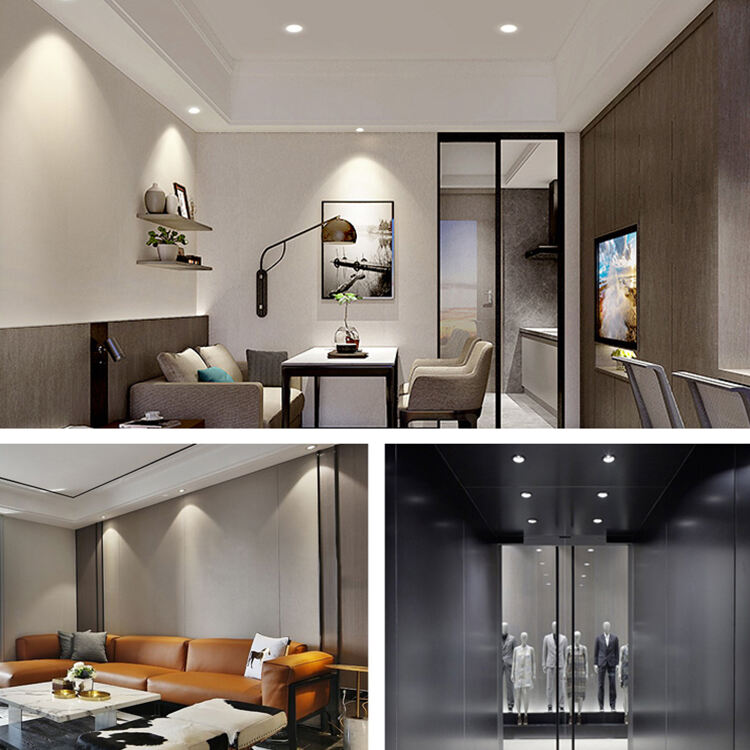

Pamahay, hotel, shopping mall, showroom, tindahan, salon room, atbp.

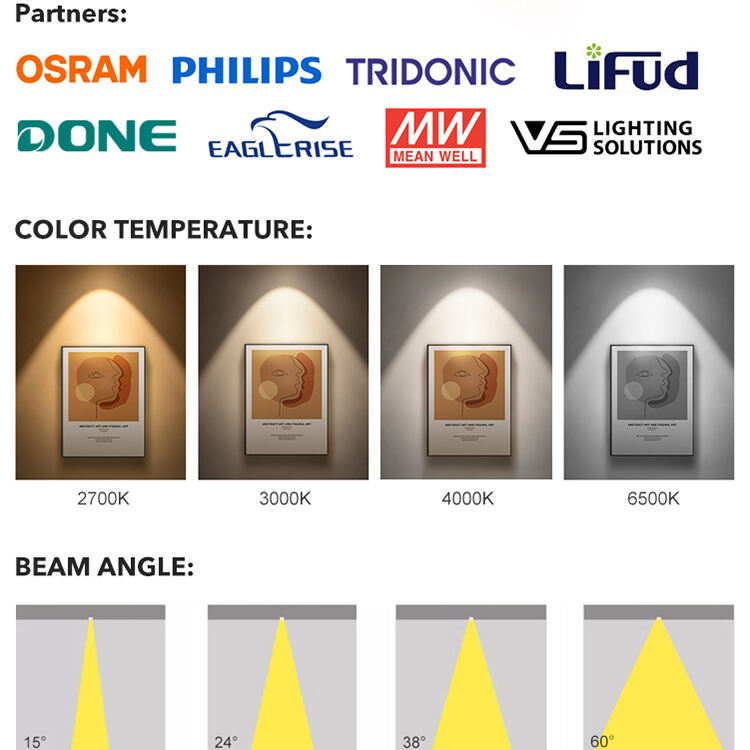

| Larawan | Modelo ng Produkto | Kuryente | Laki ng ilaw(mm) | Piraso(mm) | CCT | Kulay | Banayad na epekto | Beam angle |
 |

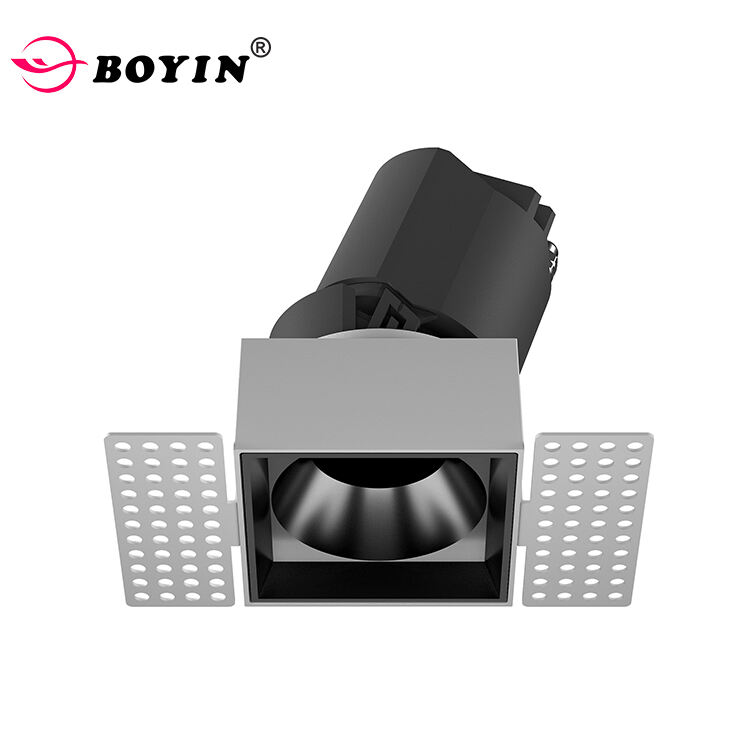

BG-WF323-1 | 5W/7W | H54*L54*H88 | 57*55 |
2700K\/3000K\/3500K\/ 4000K\/5000K\/6000K |
Puti/Itim | 80lm/w | 15/24/38/60° |
 |
BG-WF323-1A |
2700K\/3000K\/3500K\/ 4000K\/5000K\/6000K |
Puti/Itim | 80lm/w | ||||
 |
BG-WF323-1B(Maaaring I-adjust) |
2700K\/3000K\/3500K\/ 4000K\/5000K\/6000K |
Puti/Itim | 80lm/w | ||||
 |
BG-WF324-1 | 10W/12W | L74*W74*H112 | 77*75 |
2700K\/3000K\/3500K\/ 4000K\/5000K\/6000K |
Puti/Itim | 80lm/w | 8/15/24/38/60° |
 |
BG-WF324-1A |
2700K\/3000K\/3500K\/ 4000K\/5000K\/6000K |
Puti/Itim | 80lm/w | ||||
 |

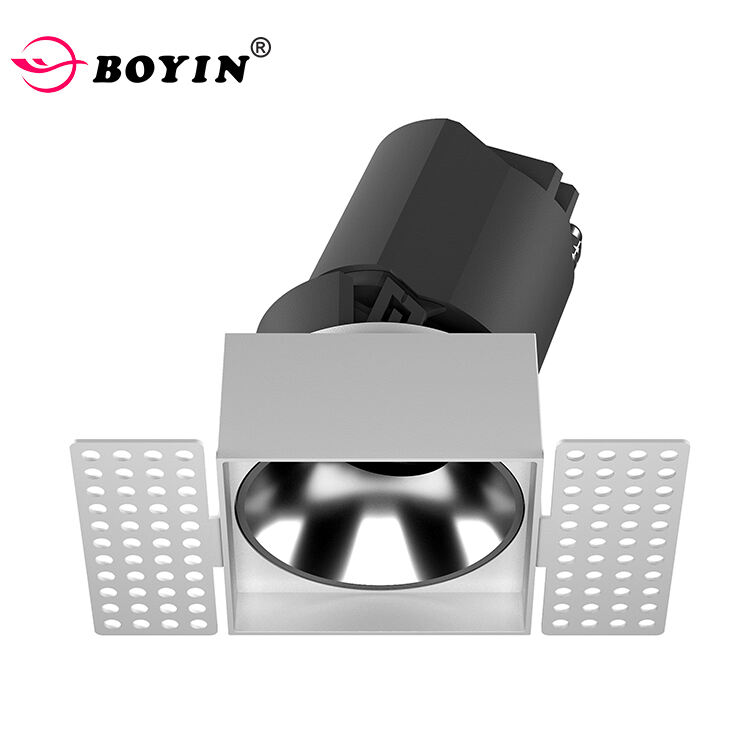

BG-WF324-1B(Maaari ipagpalit) |
2700K\/3000K\/3500K\/ 4000K\/5000K\/6000K |
Puti/Itim | 80lm/w | ||||
 |
BG-WF324-1C |
2700K\/3000K\/3500K\/ 4000K\/5000K\/6000K |
Puti/Itim | 80lm/w | ||||
 |

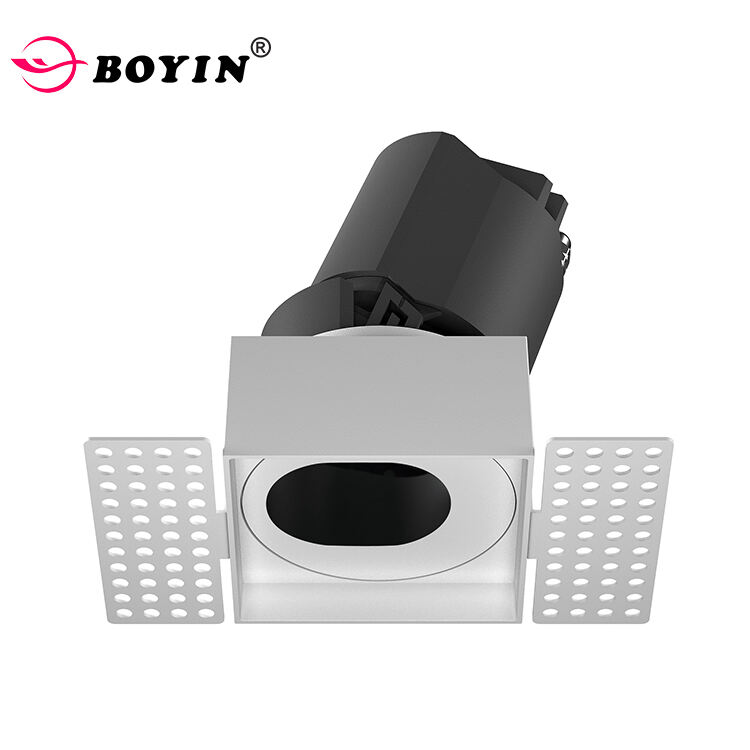

BG-WF324-1D |
2700K\/3000K\/3500K\/ 4000K\/5000K\/6000K |
Puti/Itim | 80lm/w | ||||
 |

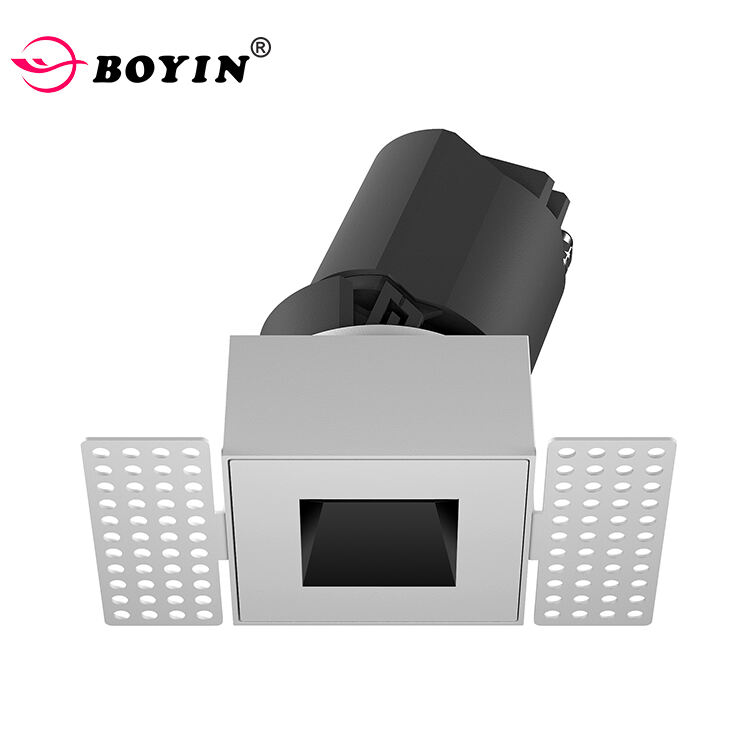

BG-WF324-1E |
2700K\/3000K\/3500K\/ 4000K\/5000K\/6000K |
Puti/Itim | 80lm/w | ||||
 |
BG-WF325-1 | 15W/20W | L94*W94*H138 | 97*95 |
2700K\/3000K\/3500K\/ 4000K\/5000K\/6000K |
Puti/Itim | 80lm/w | 15/24/38/60° |
 |
BG-WF325-1A |
2700K\/3000K\/3500K\/ 4000K\/5000K\/6000K |
Puti/Itim | 80lm/w | ||||
 |
BG-WF325-1B(Maaaring I-adjust) |
2700K\/3000K\/3500K\/ 4000K\/5000K\/6000K |
Puti/Itim | 80lm/w |

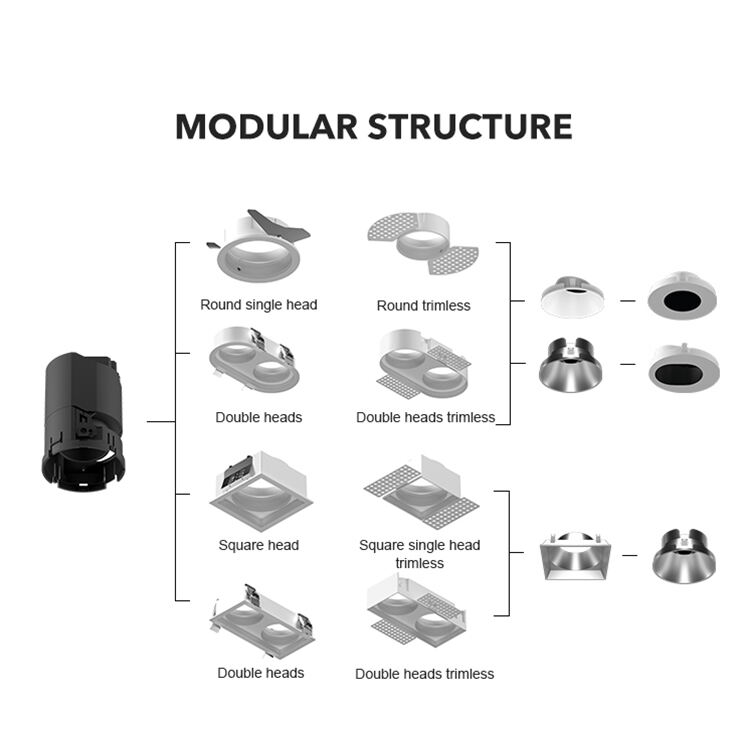

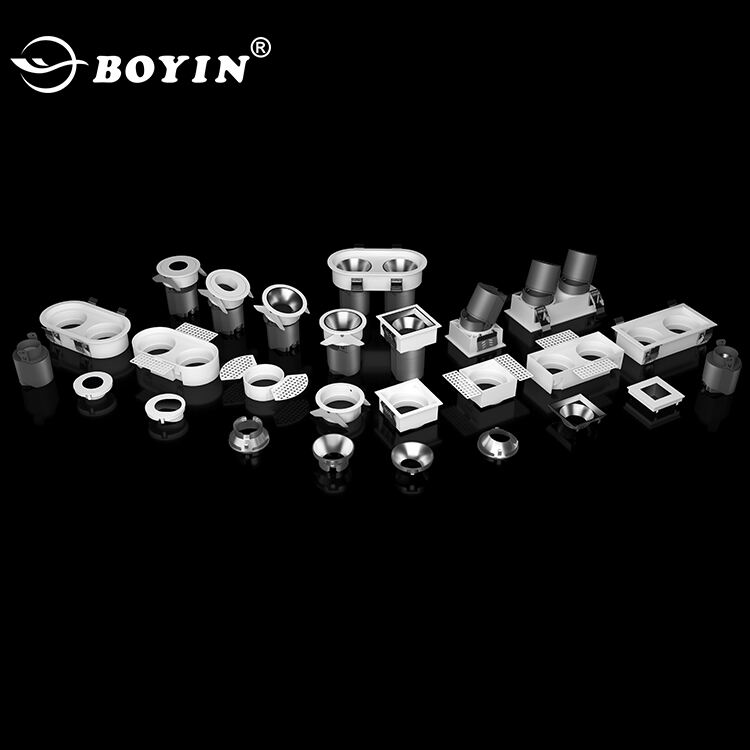

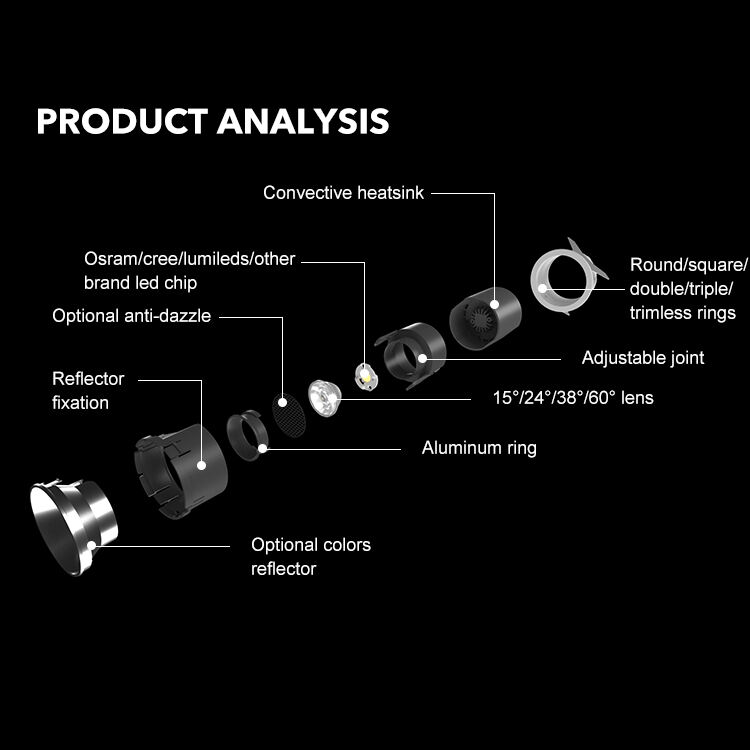

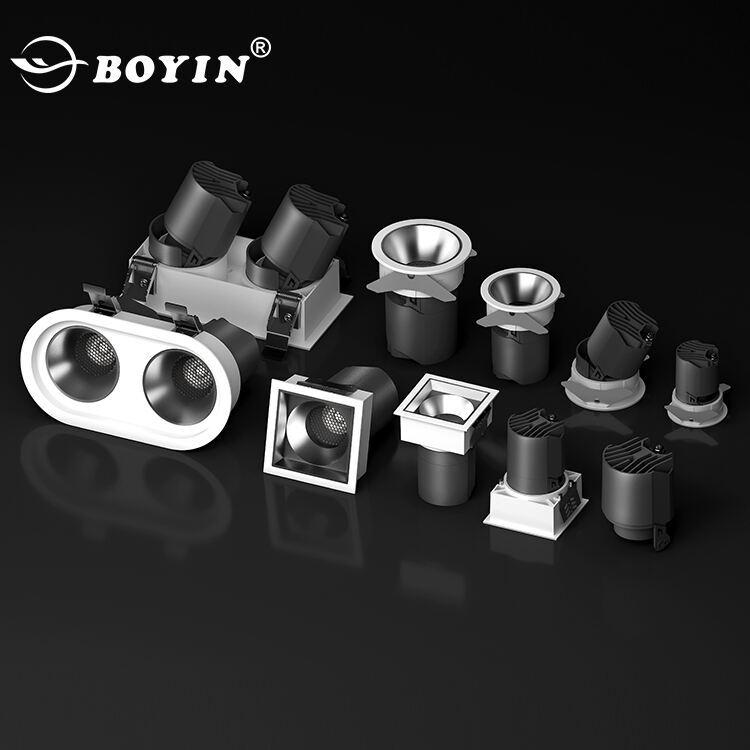

Modular na estruktura;
pag-install na walang kakailanganang gamitin ng sakay-sakal;
maraming mga opsyon para sa frame,
Mga opsyon sa kulay para sa reflector cup;
355° maaaring i-rotate;

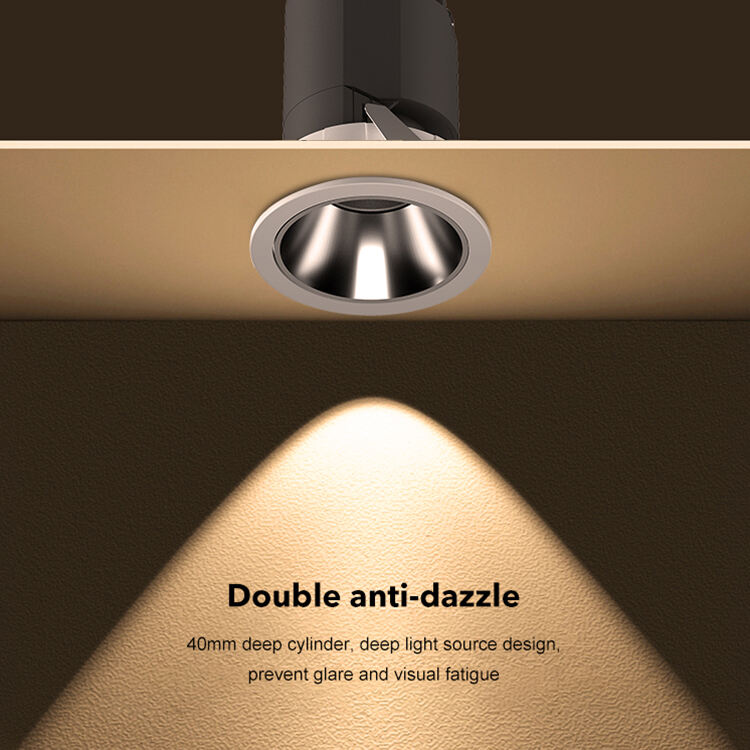

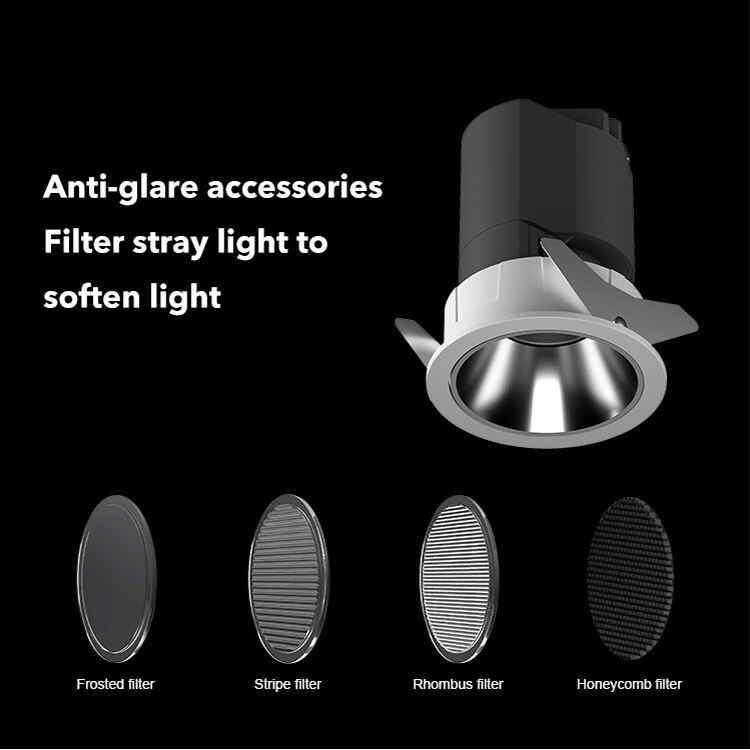

Anti-glare;
Walang trim;
Hugis parisukat;
Bulong na hugis oval;
