24V magnetikong track light, ma dim na track light, DALI magnetikong track light

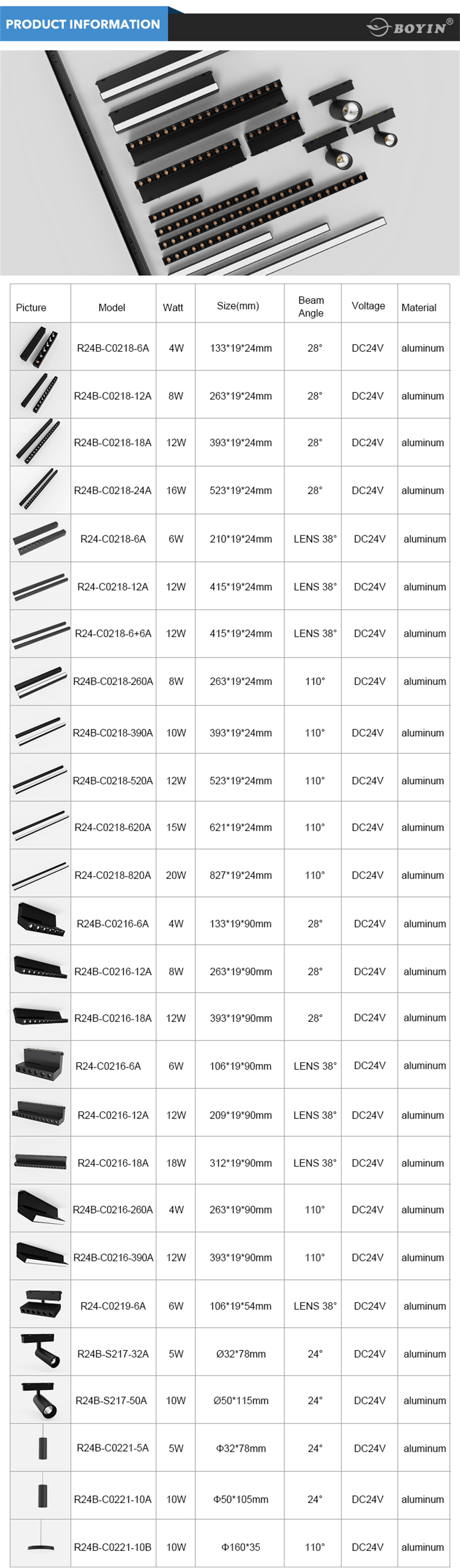

| Larawan | Modelo ng Produkto | Wattage | Lamp body size | Luminous flux ng mga ilaw | Luminous Angle | Mga punto ng pagsiselling | Kulay ng ilaw | Banayad na epekto | CCT | MAO Zhong | Sukat ng Packaging | kahon | Isang wattage sumasagot sa isang presyo (sa dolyar ng Estados) | Kulay |
 |

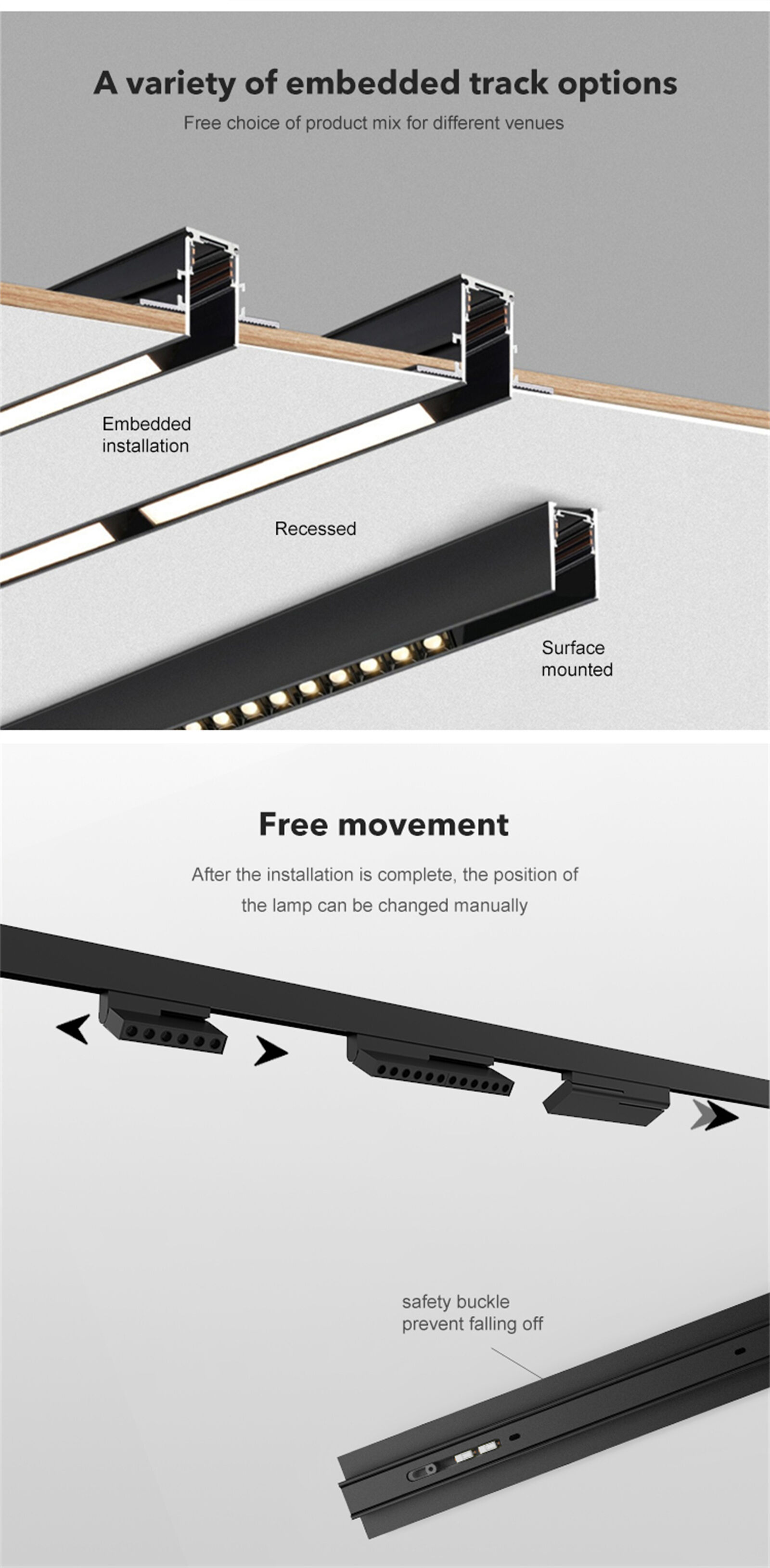

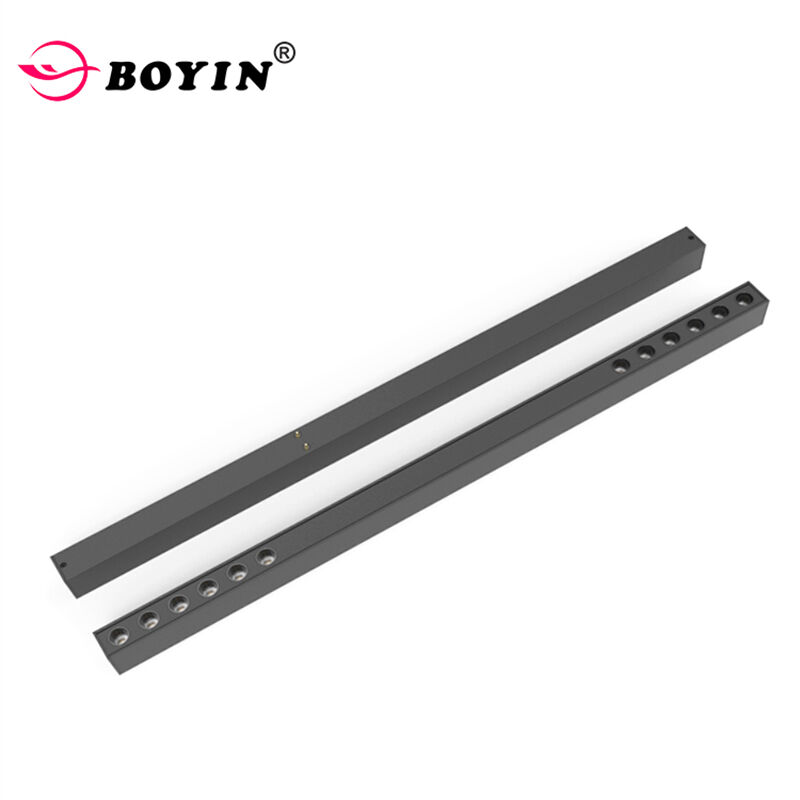

R24B-C0218-6A | 4W | 133*19*24 | 320LM | 28° | Magnetic light/DC24V/recessed at inilalagay sa ibabaw sa isang rail/dali dimmable/0-10v dimmable/triac dimmable | 3000K/ 4000k | 80lm/w | 3000K/4000K/5700K | 4 | 26*17*20CM | 30 | $12.00 | Itim |
 |

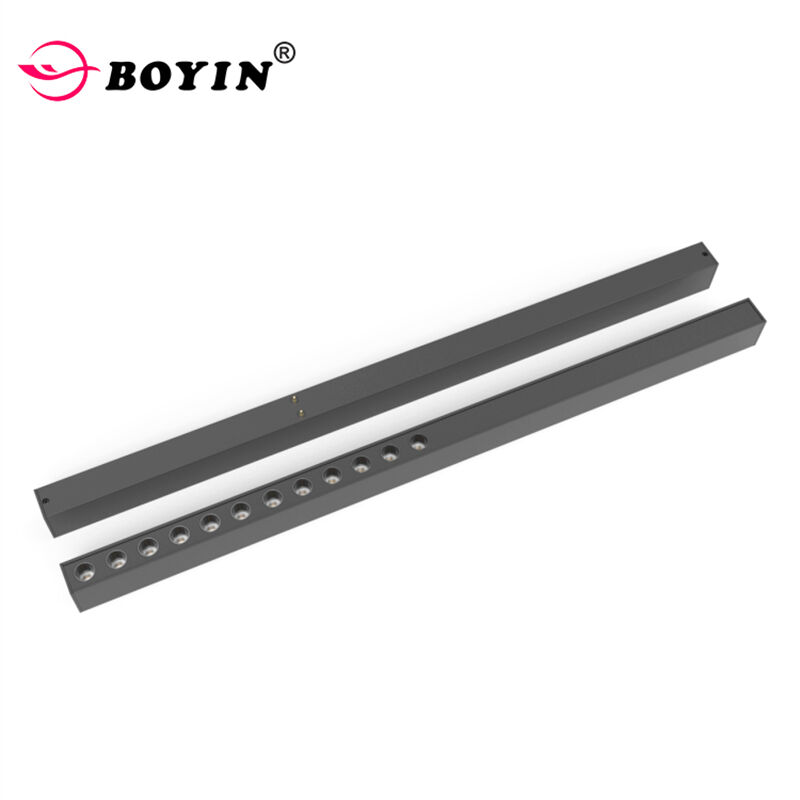

R24B-C0218-12A | 8W | 263*19*24 | 640lm | 28° | 3000K/ 4000k | 80lm/w | 3000K/4000K/5700K | 7 | 30*26*20CM | 30 | $20.00 | Itim | |
 |
R24B-C0218-18A | 12W | 393*19*24 | 960lm | 28° | 3000K/ 4000k | 80lm/w | 3000K/4000K/5700K | 8 | 45*26*20CM | 30 | $26.00 | Itim | |
 |
R24B-C0218-24A | 16W | 523*19*24 | 128lm | 28° | 3000K/ 4000k | 80lm/w | 3000K/4000K/5700K | 11 | 57*26*20CM | 30 | $30.00 | Itim | |
 |
R24-C0218-6A | 6W | 210*19*24 | 480lm | LENS 38° | 3000K/ 4000k | 80lm/w | 3000K/4000K/5700K | 6 | 26*24*20CM | 30 | $22.00 | Itim | |
 |
R24-C0218-12A | 12W | 415*19*24 | 960lm | LENS 38° | 3000K/ 4000k | 80lm/w | 3000K/4000K/5700K | 11 | 45*26*20CM | 30 | $32.00 | Itim | |
 |
R24-C0218-6+6A | 12W | 415*19*24 | 960lm | LENS 38° | 3000K/ 4000k | 80lm/w | 3000K/4000K/5700K | 11 | 45*26*20CM | 30 | $32.00 | Itim | |
 |

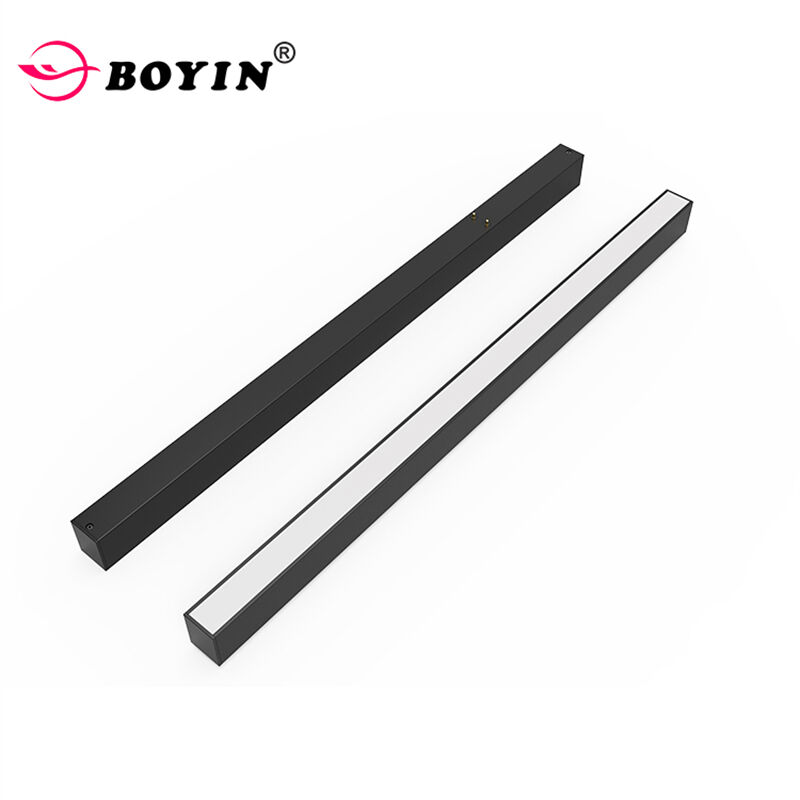

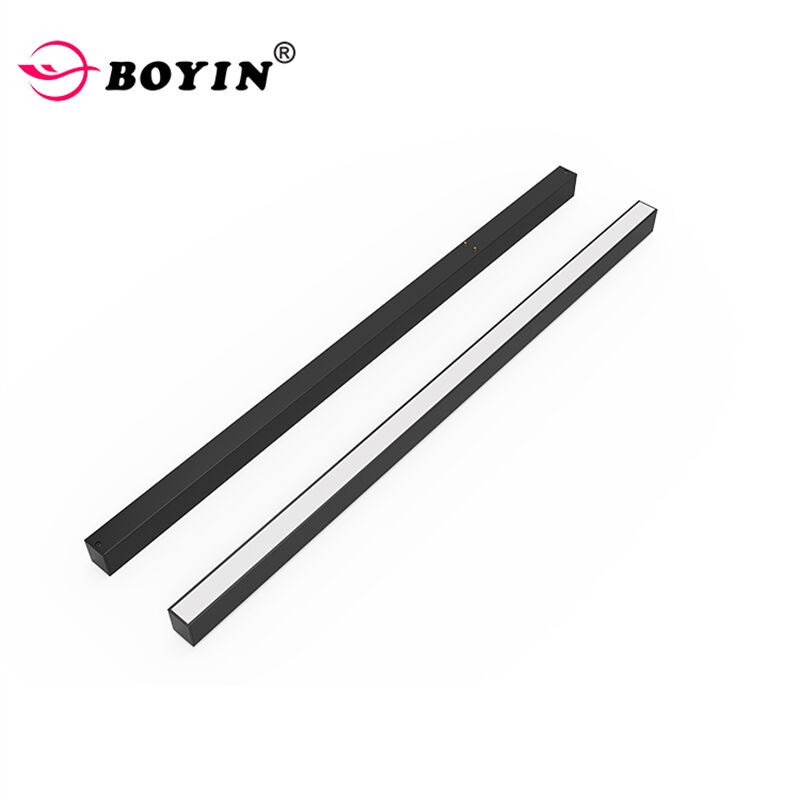

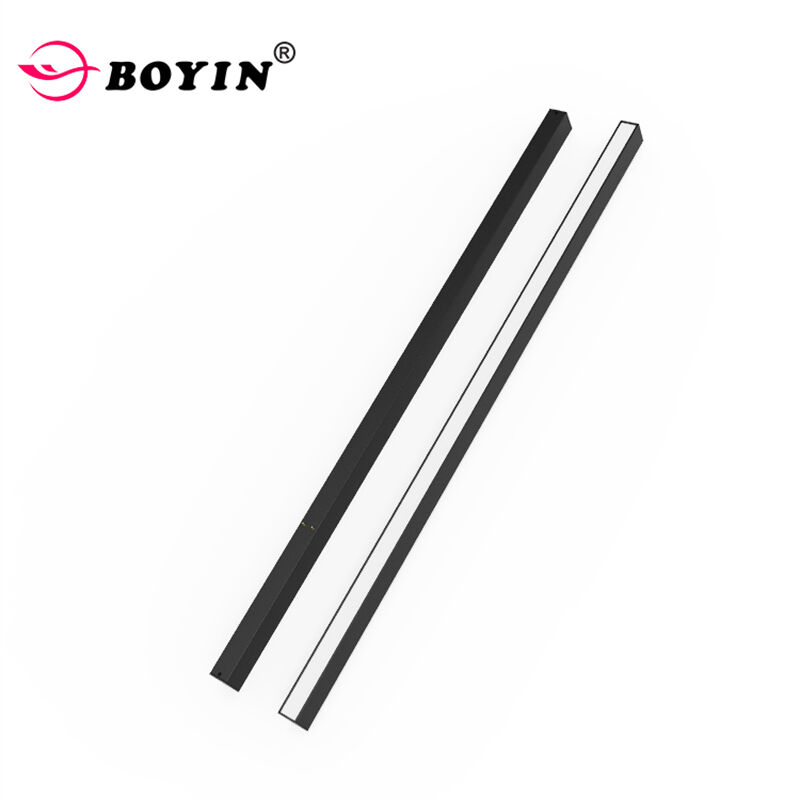

R24B-C0218-260A | 8W | 263*19*24 | 640lm | 110° | 3000K/ 4000k | 80lm/w | 3000K/4000K/5700K | 7 | 30*26*20CM | 30 | $17.00 | Itim | |
 |
R24B-C0218-390A | 10W | 393*19*24 | 800LM | 110° | 3000K/ 4000k | 80lm/w | 3000K/4000K/5700K | 8.5 | 45*26*20CM | 30 | $21.00 | Itim | |
 |
R24B-C0218-520A | 12W | 523*19*24 | 960lm | 110° | 3000K/ 4000k | 80lm/w | 3000K/4000K/5700K | 11 | 57*26*20CM | 30 | $23.00 | Itim | |
 |
R24-C0218-620A | 15W | 621*19*24 | 1200LM | 110° | 3000K/ 4000k | 80lm/w | 3000K/4000K/5700K | 12 | 67*26*20CM | 30 | $26.00 | Itim | |
|
R24-C0218-820A | 20W | 827*19*24 | 1600lm | 110° | 3000K/ 4000k | 80lm/w | 3000K/4000K/5700K | 17 | 87*26*20CM | 30 | $30.00 | Itim | |
 |
R24B-C0216-6A | 4W | 133*19*90 | 320LM | 28° | 3000K/ 4000k | 80lm/w | 3000K/4000K/5700K | 11 | 35*30*30CM | 30 | $20.00 | Itim | |
 |
R24B-C0216-12A | 8W | 263*19*90 | 640lm | 28° | 3000K/ 4000k | 80lm/w | 3000K/4000K/5700K | 10 | 40*31*30CM | 16 | $26.00 | Itim | |
|
R24B-C0216-18A | 12W | 393*19*90 | 960lm | 28° | 3000K/ 4000k | 80lm/w | 3000K/4000K/5700K | 13 | 43*38*30CM | 16 | $32.00 | Itim | |
 |
R24-C0216-6A | 6W | 106*19*90 | 480lm | LENS 38° | 3000K/ 4000k | 80lm/w | 3000K/4000K/5700K | 16.5 | 31*26*27CM | 48 | $26.00 | Itim | |
 |
R24-C0216-12A | 12W | 209*19*90 | 960lm | LENS 38° | 3000K/ 4000k | 80lm/w | 3000K/4000K/5700K | 14 | 31*26*26CM | 24 | $34.00 | Itim | |
 |
R24-C0216-18A | 18W | 312*19*90 | 1440LM | LENS 38° | 3000K/ 4000k | 80lm/w | 3000K/4000K/5700K | 19.5 | 45*31*26CM | 24 | $42.00 | Itim | |
 |
R24B-C0216-260A | 4W | 263*19*90 | 320LM | 110° | 3000K/ 4000k | 80lm/w | 3000K/4000K/5700K | 11.5 | 40*31*30CM | 16 | $24.00 | Itim | |
 |
R24B-C0216-390A | 12W | 393*19*90 | 960lm | 110° | 3000K/ 4000k | 80lm/w | 3000K/4000K/5700K | 14.5 | 43*38*30CM | 16 | $31.00 | Itim | |
 |
R24-C0219-6A | 6W | 106*19*54 | 480lm | LENS 38° | 3000K/ 4000k | 80lm/w | 3000K/4000K/5700K | 11 | 31*26*27CM | 48 | $20.00 | Itim | |
 |
R24B-S217-32A | 5W | ø32*78 | 400LM | 24° | 3000K/ 4000k | 80lm/w | 3000K/4000K/5700K | 8 | 40*31*30CM | 42 | $18.00 | Itim | |
 |
R24B-S217-50A | 10W | ø50*115 | 800LM | 24° | 3000K/ 4000k | 80lm/w | 3000K/4000K/5700K | 9 | 40*35*31CM | 28 | $20.00 | Itim | |
 |
R24B-C0221-5A | 5W | φ32*78 Nakabitin na kable 800MM | 400LM | 24° | 3000K/ 4000k | 80lm/w | 3000K/4000K/5700K | 8.5 | 40*31*30CM | 42 | $17.00 | Itim | |
 |
R24B-C0221-10A | 10W | φ50*105 Nakabitin na kable 800MM | 800LM | 24° | 3000K/ 4000k | 80lm/w | 3000K/4000K/5700K | 9 | 40*35*31CM | 28 | $19.00 | Itim | |
 |
R24B-C0221-10B | 10W | φ160*35 Nakabitin na kable 800MM | 800LM | 110° | 3000K/ 4000k | 80lm/w | 3000K/4000K/5700K | 7.5 | 42*37*24CM | 10 | $19.00 | Itim |
| Pangalan | Magnetikong tira lampara |
| Boltahe ng Input | DC24V |
| Buhay ng Serbisyo | 30000h |
| Indeks ng pag-render ng kulay | >80 |
| Kung magdim o hindi | oo |
| Installation Method | magntic |
| May sertipikasyon | cE ROHS |
| Materyales | Aluminium |
| Panahon ng warranty | 3 |
| Pinagmulan ng ilaw | oSRAM |
