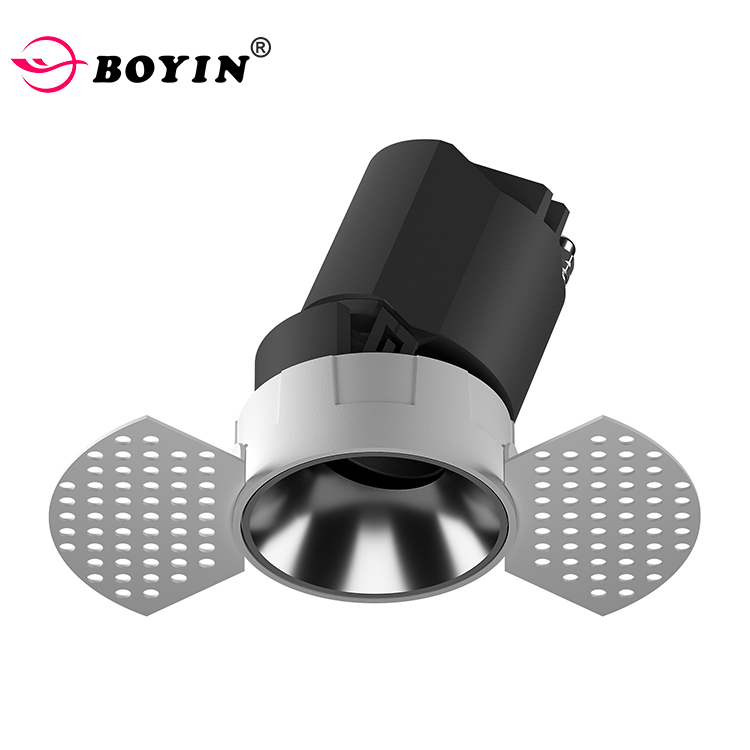

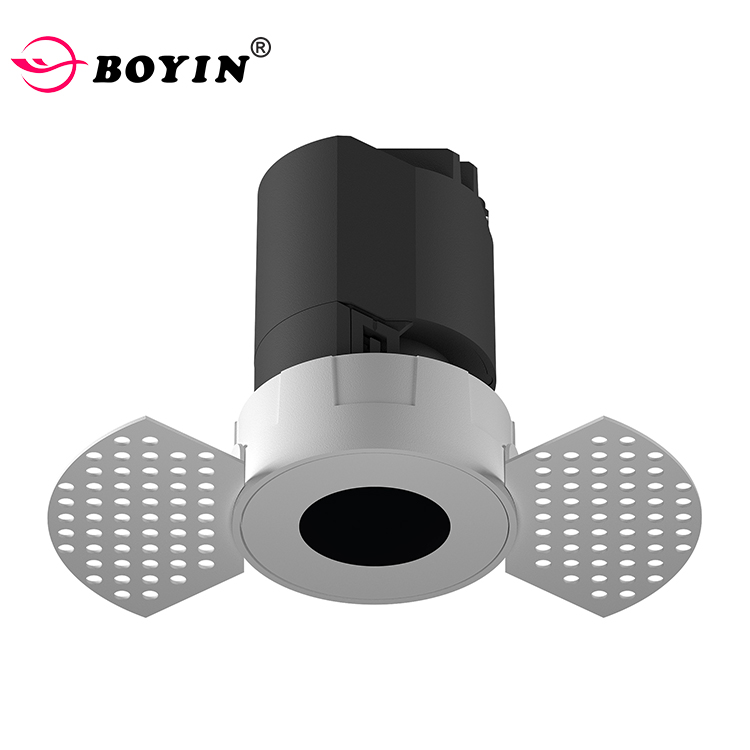

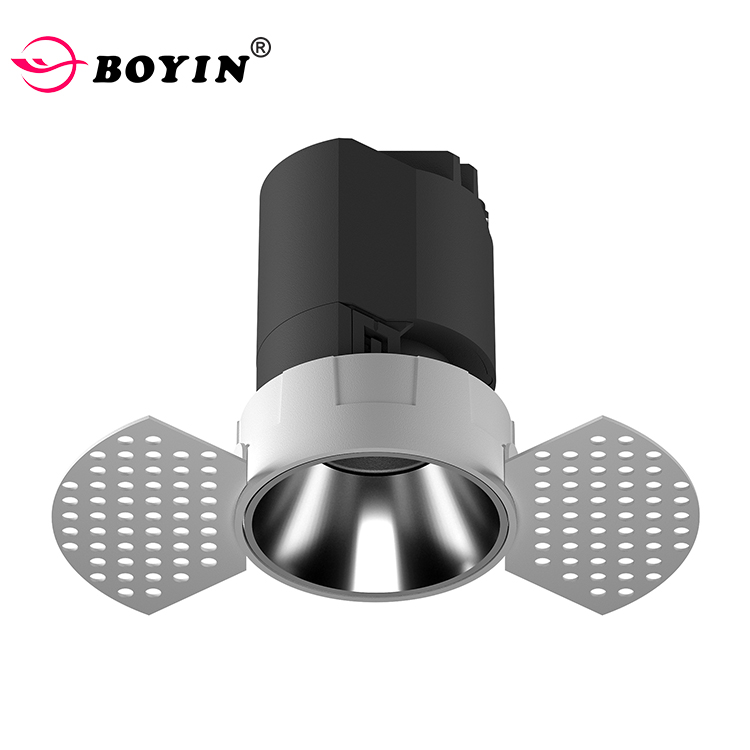

Trimless LED downlight framelss spotlight 5W/7W/10W/12W/15W/20W rotateble for hotel

LED trimless downlight spotlight LED wall washer light, body 355° rotatable, mutiple modular design, free combination of frame and reflector cup, frameless downlight, 5W/7W/10W/12W/15W/20W.

CATEGORY:
Get A Free Quote

Description

LED trimless downlight spotlight LED wall washer light, body 355° rotatable, mutiple modular design, free combination of frame and reflector cup, frameless downlight, 5W/7W/10W/12W/15W/20W.

Application

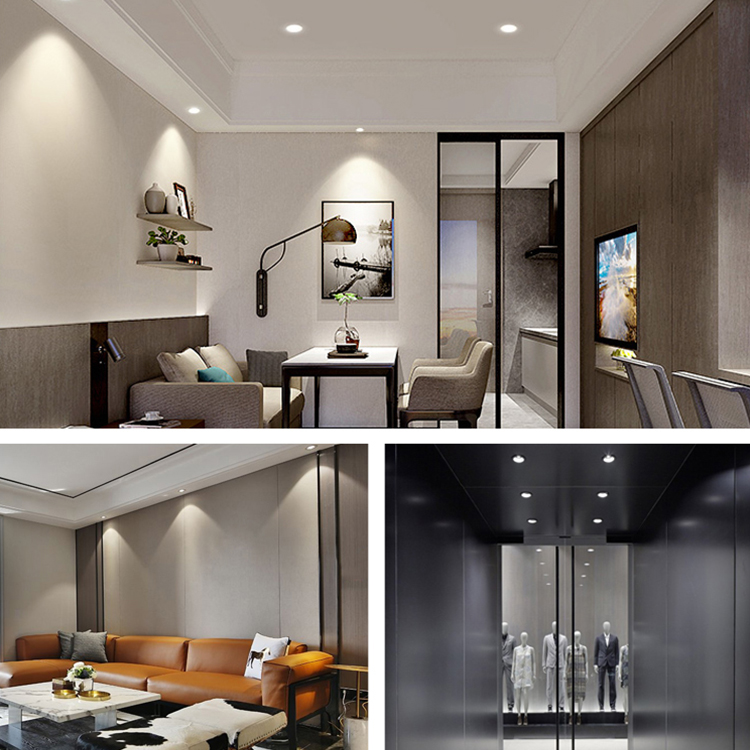

Residential, hotel, shopping mall, showroom, shop, bar, etc.

Specification

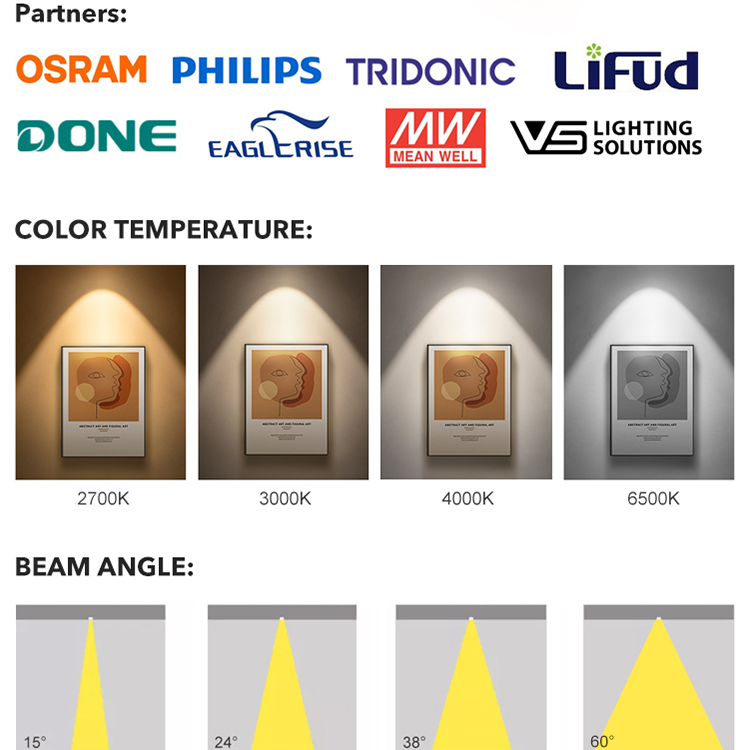

Picture Product Model Power Lamp size(mm) Cut out(mm) CCT Color Light effect Beam Angle



BG-WF323 5W/7W Φ75*H80 Φ55

2700K/3000K/3500K/

4000K/5000K/6000K

White/Black 80lm/w 15/24/38/60°



BG-WF324 10W/12W Φ95*H101 Φ75

2700K/3000K/3500K/

4000K/5000K/6000K

White/Black 80lm/w 8/15/24/38/60°
3.jpg BG-WF324C

2700K/3000K/3500K/

4000K/5000K/6000K

White/Black 80lm/w

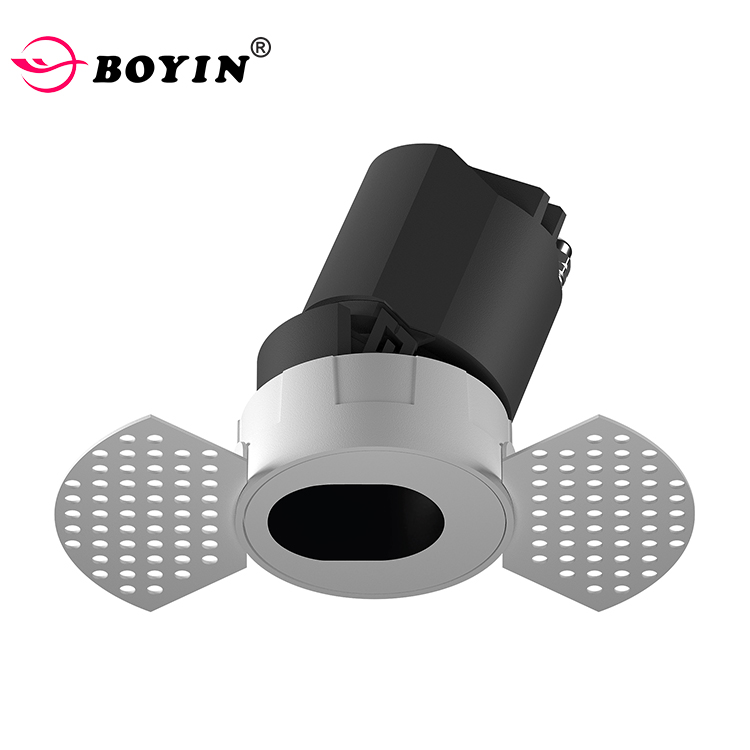

4.jpg BG-WF324D

2700K/3000K/3500K/

4000K/5000K/6000K

White/Black 80lm/w



BG-WF325A 15W/ 20W Φ115*H122 Φ95

2700K/3000K/3500K/

4000K/5000K/6000K

White/Black 80lm/w 15/24/38/60°

Competitive Advantage

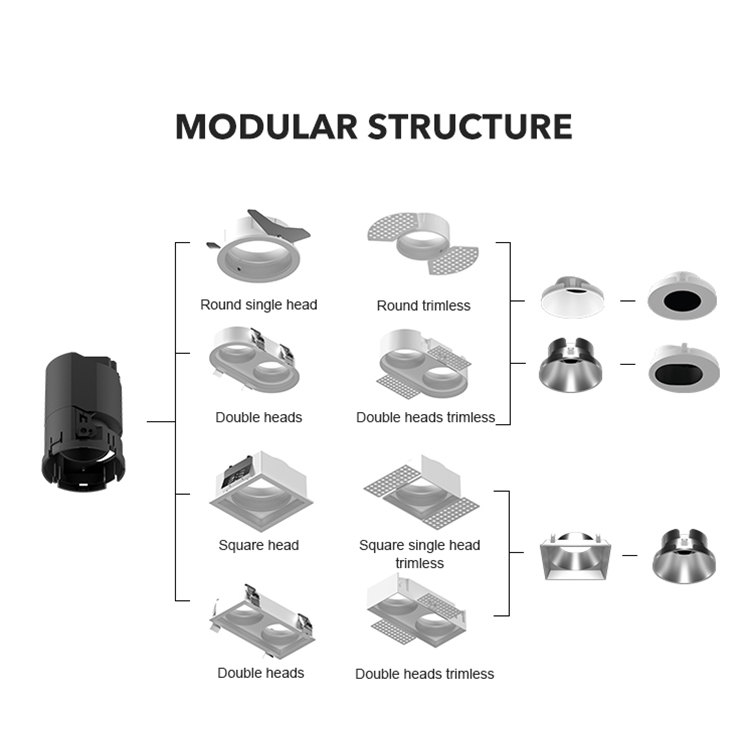

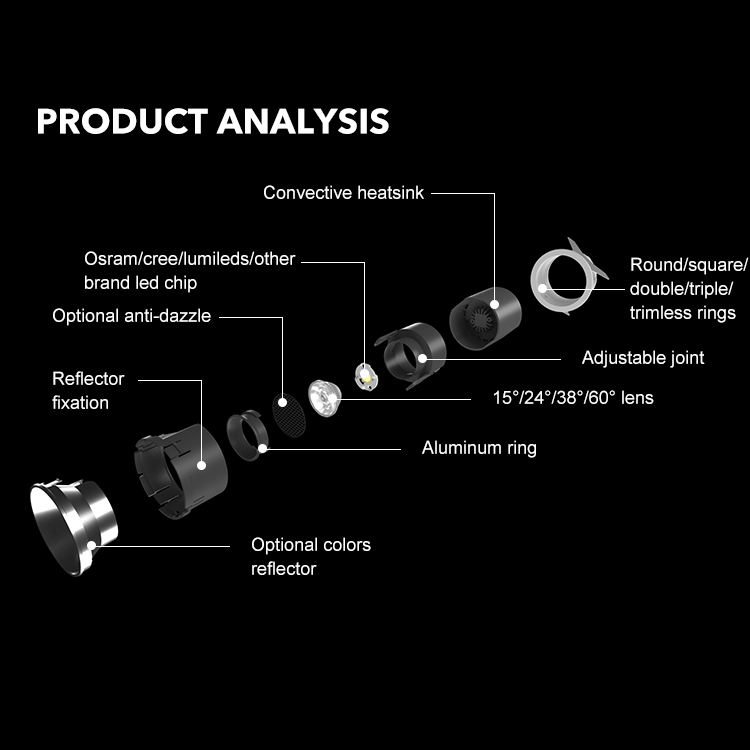

Modular structure;

tools free installation;

multiple options for frame;

Multiple color options for reflector cup;

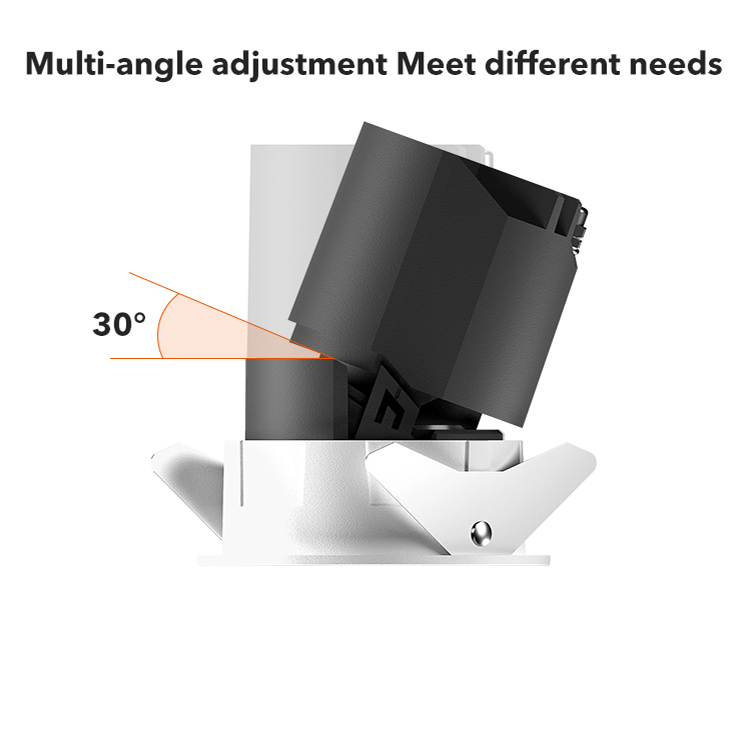

355°rotatable;

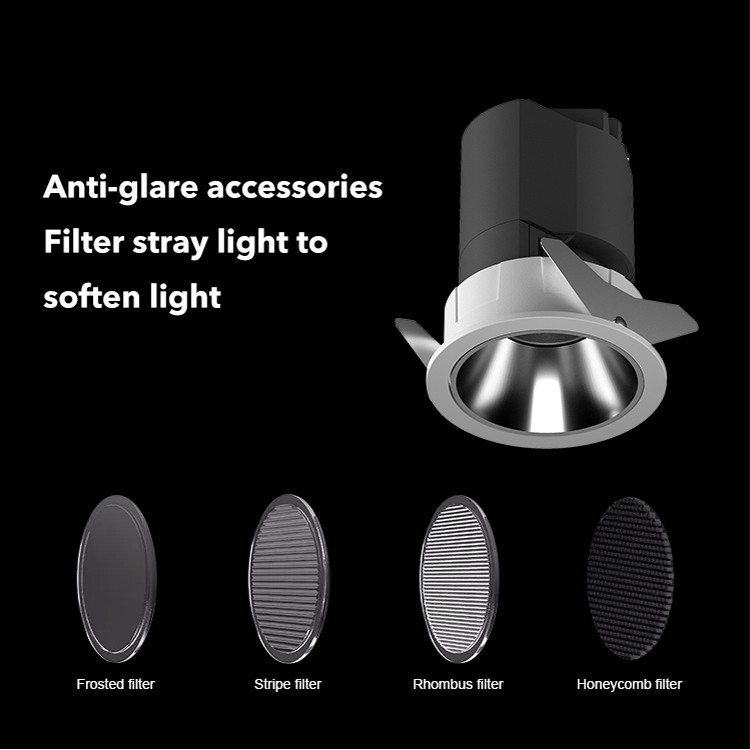

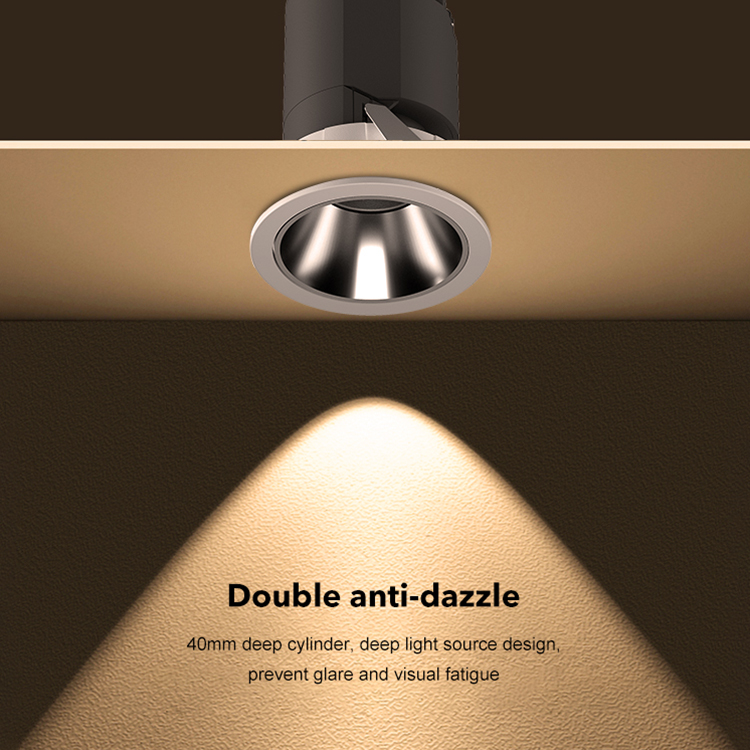

Anti-glare;

Round shape;

High end downlight;

Trimless;

5W/7W/10W/12W/15W/20W;

Additional information

Place of Origin China
Brand Name Boyin
Product Name Wall Washer Downlight
Model Number BG-WF323, BG-WF324, BG-WF325
Material Aluminum
Input Voltage AC 85-265V
IP Rated IP20
Life Span 30000-50000Hrs
Whether to dim Customized
Installation Way Recessed
Certification CE, ROHS, CB, SASO, SAA, RCM, UL, ENEC, EMC, EAC
Packaging Details 20/30/50PCS per carton
Delivery Time 7-15 days
Supply Ability 10000pcs/month
Warranty 3-5 years
