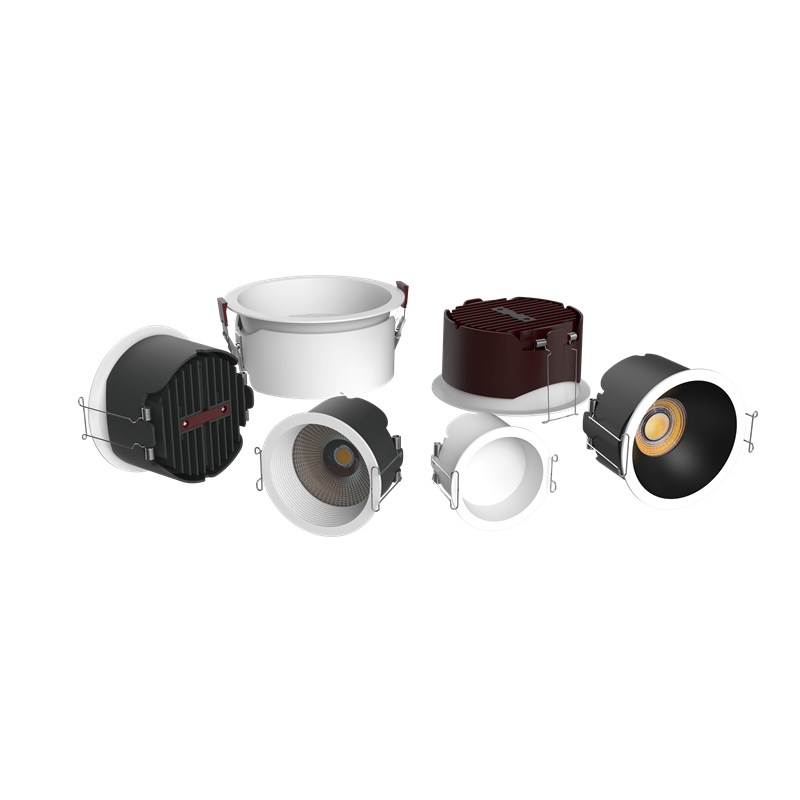

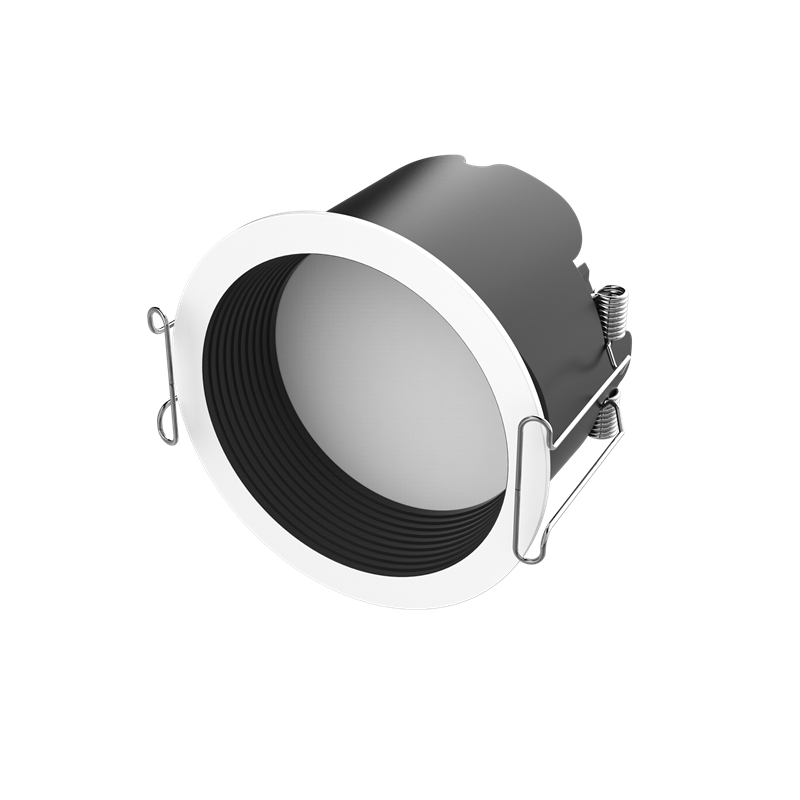

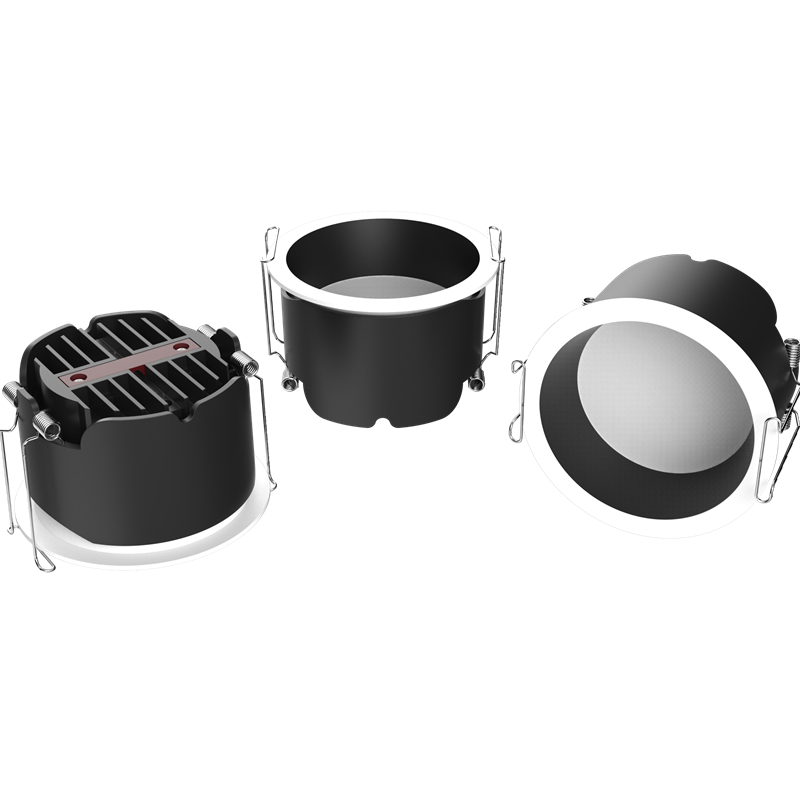

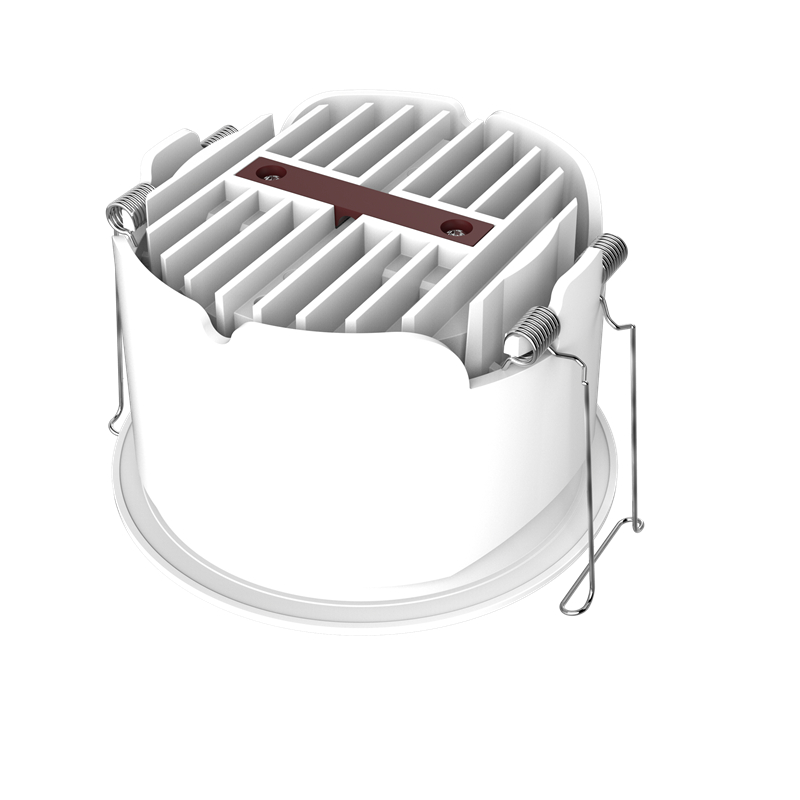

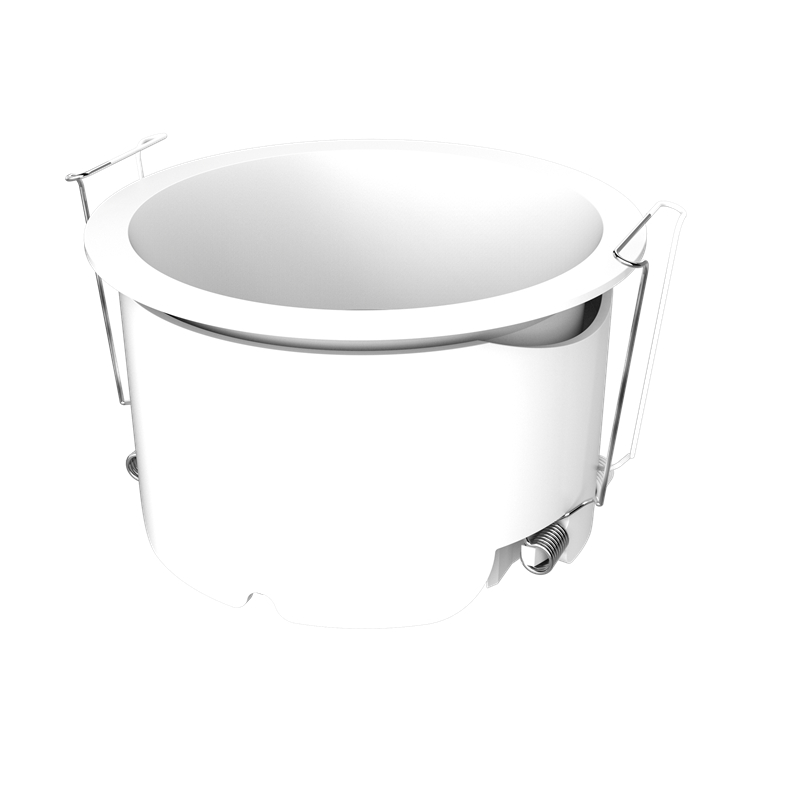

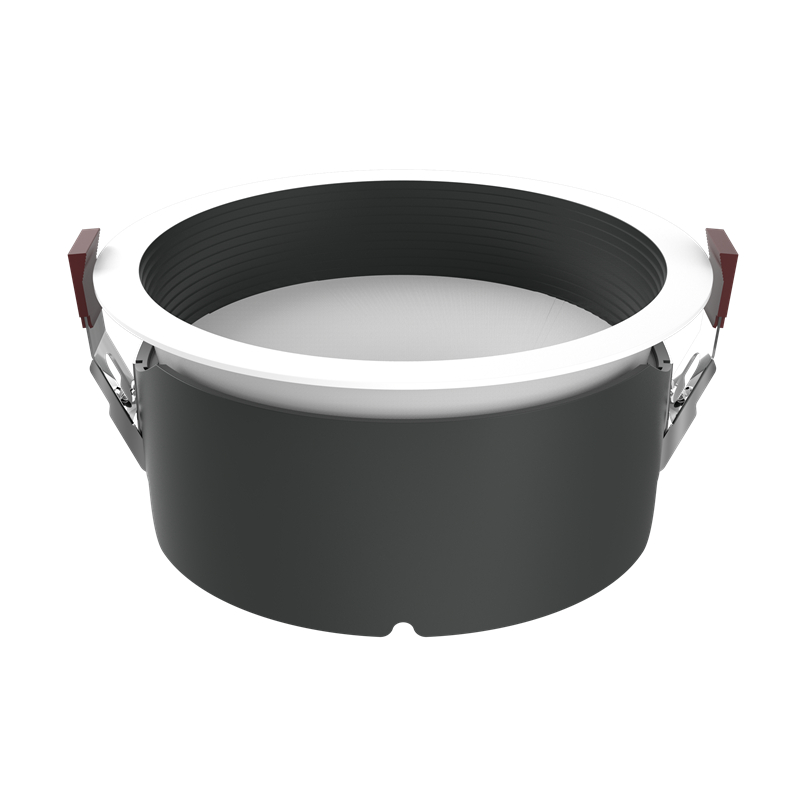

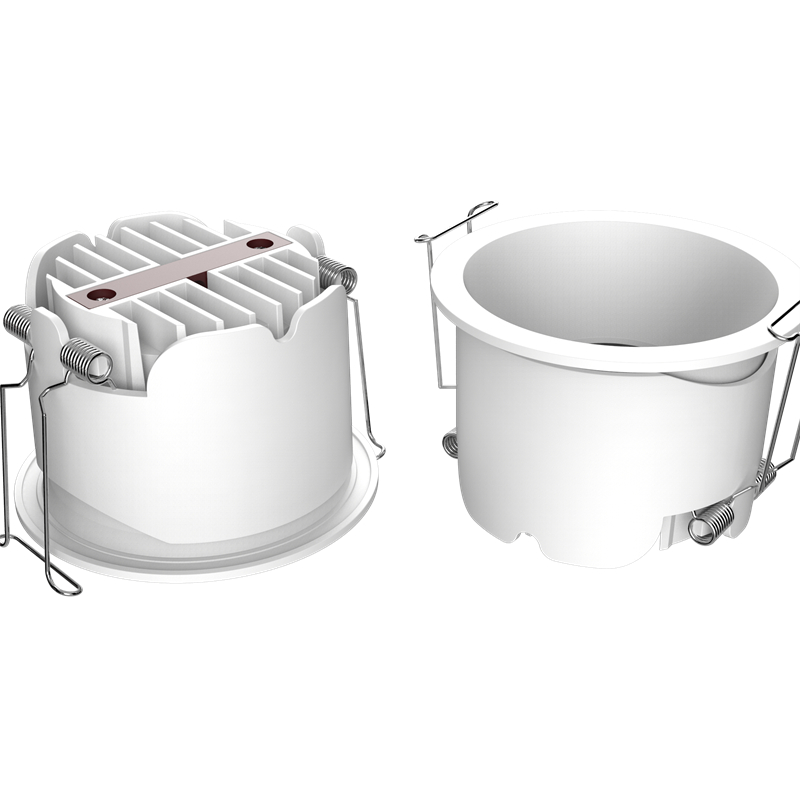

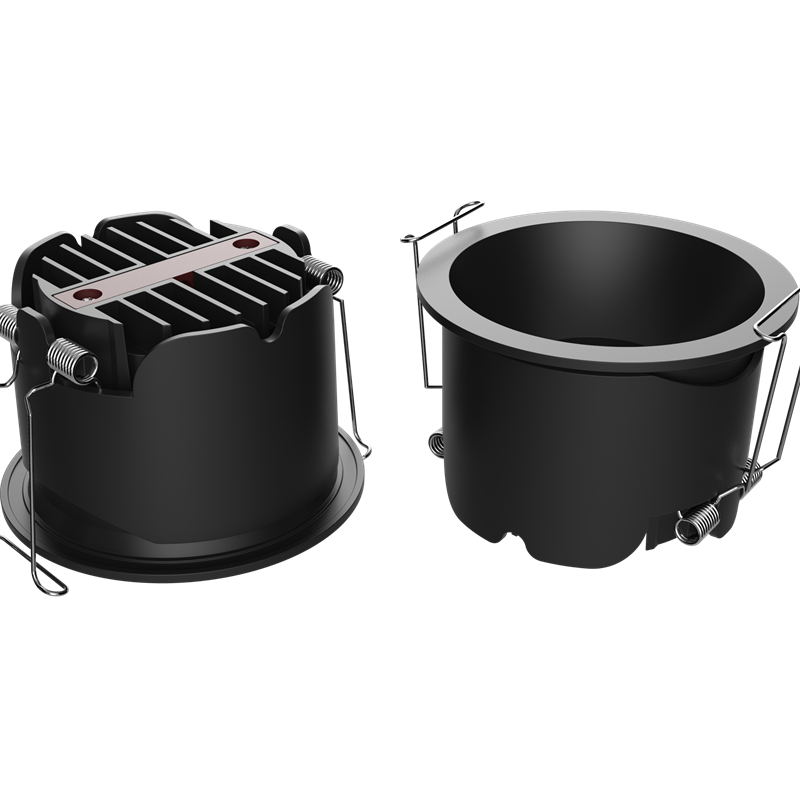

LED recessed spotlight, waterproof downlight spotlight, Anti-glare downlight, Ultra-thin edge downlight, color customization downlight
60 degree LED SMD downlight cut out size D75mm D85mm D95mm D110mm D145mm D170mm, watts options: 7W/12W/15W/20W/30W/40W. Customization is available.
Similar series: BG-1301, BG-1311
Quick Detail
60 degree LED downlight, PMMA diffuser downlight spotlight, 10W 12W 15W 20W 30W 40W downlight
Residential, hotel, shopping mall, showroom, retail shop, bar, salon, etc.
| Picture | Part No. | Power | Output Lumen | Beam | Lamp Size | Cut Size | CCT | CRI |
 |
BG-1321 | 10w | 560lm | 60° | D82H53mm | D75mm |
2700/3000/ 4000/6500K |
>90 |
| BG-1322 | 12w | 800lm | 60° | D96H58mm | D85mm |
2700/3000/ 4000/6500K |
>90 | |
| BG-1323 | 15w | 9601m | 60° | D106H63mm | D95mm |
2700/3000/ 4000/6500K |
>90 | |
| BG-1324 | 20w | 1600lm | 60° | D123H68mm | D110mm |
2700/3000/ 4000/6500K |
>90 | |
| BG-1325 | 30w | 2400lm | 60° | D155H76mm | D145mm |
2700/3000/ 4000/6500K |
>90 | |
| BG-1326 | 40w | 3200lm | 60° | D185H83mm | D170mm |
2700/3000/ 4000/6500K |
>90 |
60 degree LED downlight
LED diffuser downlight spotlight
7W/12W/15W/20W/30W/40W Downlights
SMD downlight spotlight
Cut out D75mm/D85mm/D95mm/D110mm/D145mm/D170mm
| Place of Origin | China |
| Brand Name | Boyin |
| Product Name | LED downlight |
| Model Number | BG-1321,BG-1322,BG-1323,BG-1324,BG-1325,BG-1326 |
| Material | Aluminum |
| Input Voltage | AC 220-240V |
| IP Rated | IP20 |
| Life Span | 30000-50000Hrs |
| Whether to dim | Customized |
| Installation Way | Recessed |
| Certification | CE, ROHS, CB, SASO, SAA, RCM, UL, ENEC, EMC, EAC |
| Packaging Details: | 20/30/50PCS per carton |
| Delivery Time: | 7-15 days |
| Supply Ability: | 10000pcs/months |
| Warranty | 3 years |
| Light Source | SMD |
| Light efficacy | 100-120lm/w |
| Input Voltage | AC220-240V |
| Power Factor | >0.5 |
| Diffuser | Acrylic |
| Reflector | black/white |
| Dimming(optional) | Triac/0-10V/DALI |
| IP range | 54 |
| Operating Temperature | -22-55℃ |
| Applications | home,shop,hotel,restaurant |
| Customization | available |
| Color | white |
