Place of OriginChinaBrand NameBoyinProduct NameLED pendant lightModel NumberR22IP RatedIP20Life Span30000-50000HrsWhether to dimCustomizedInstallation WaySurface mountedCertificationCE, ROHS, CB, SASO, SAA, RCM, UL, ENEC, EMC, EACPackaging Details20/...

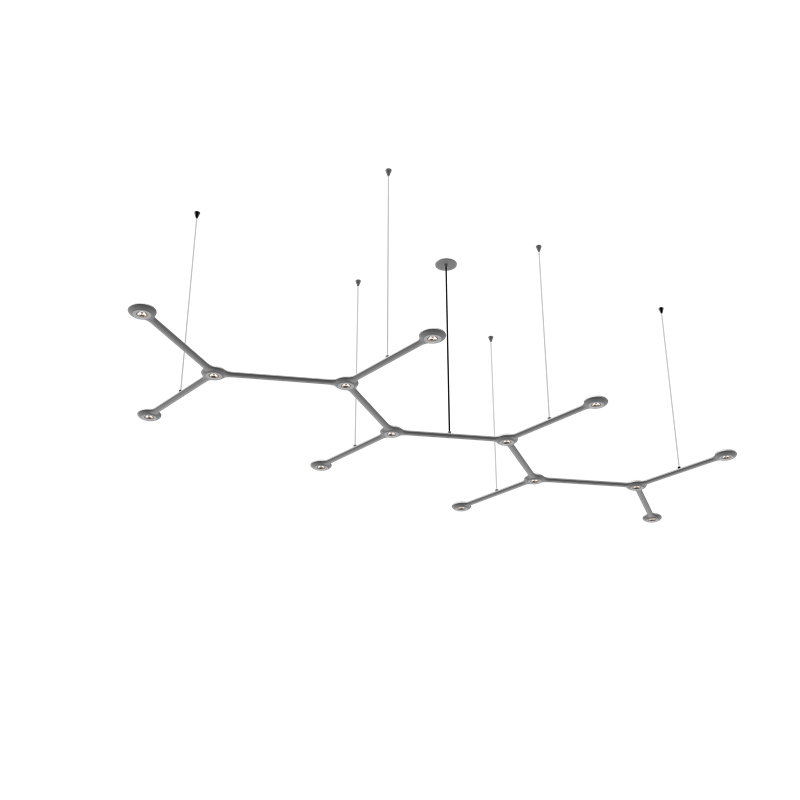

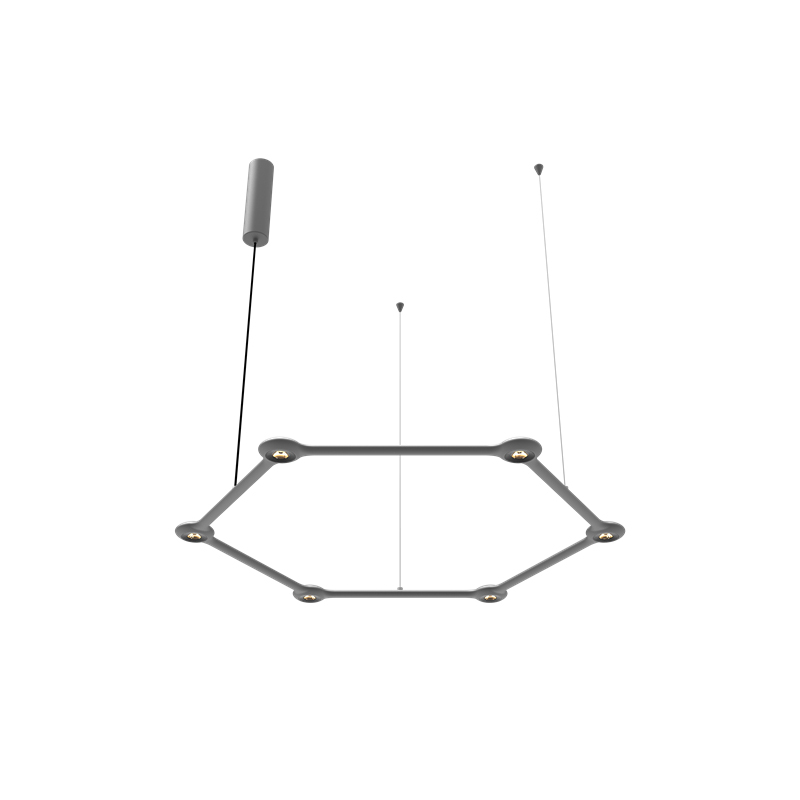

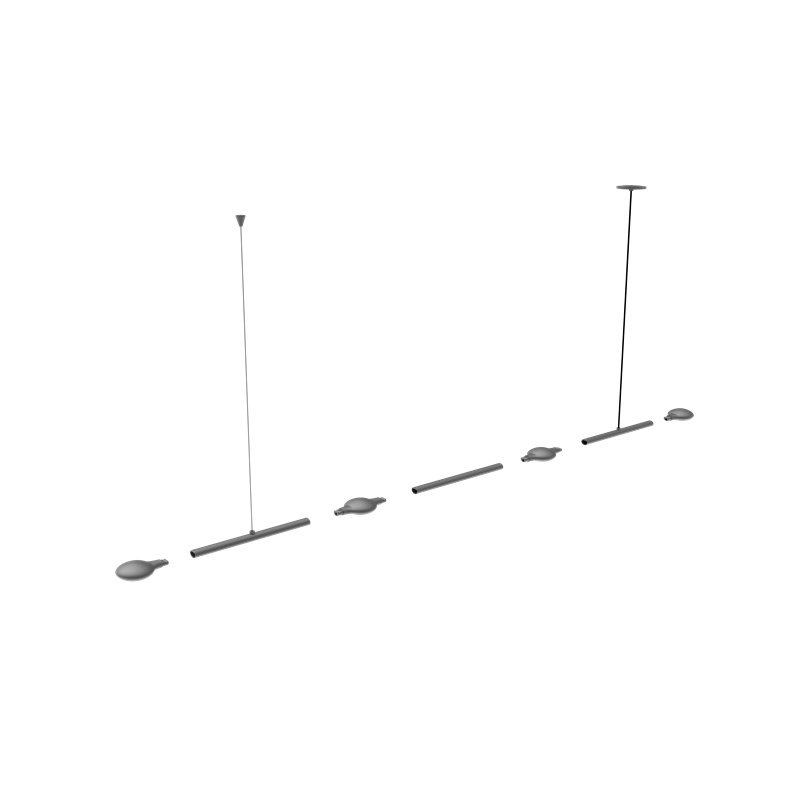

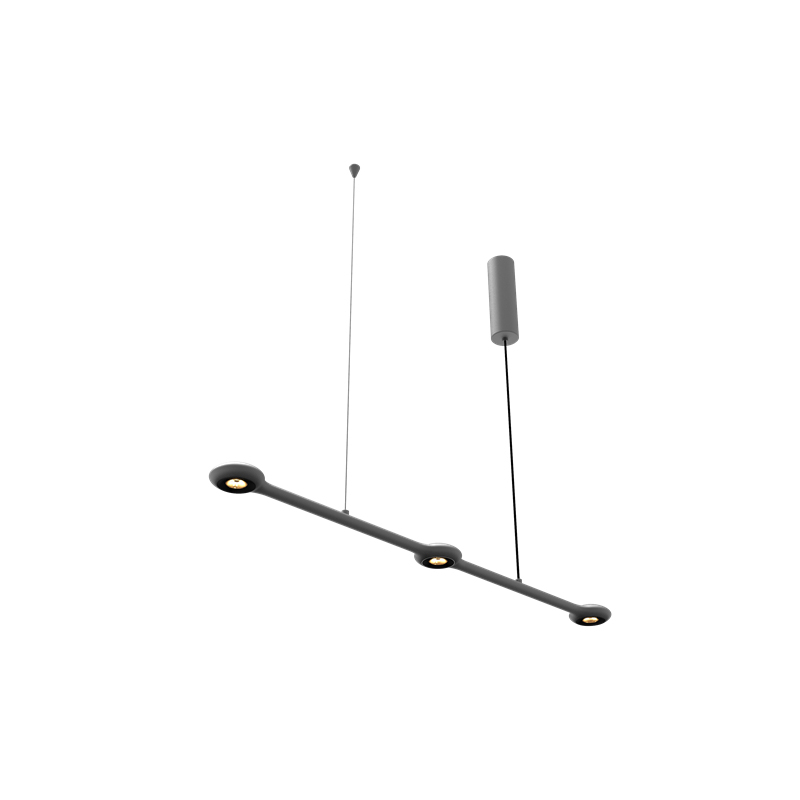

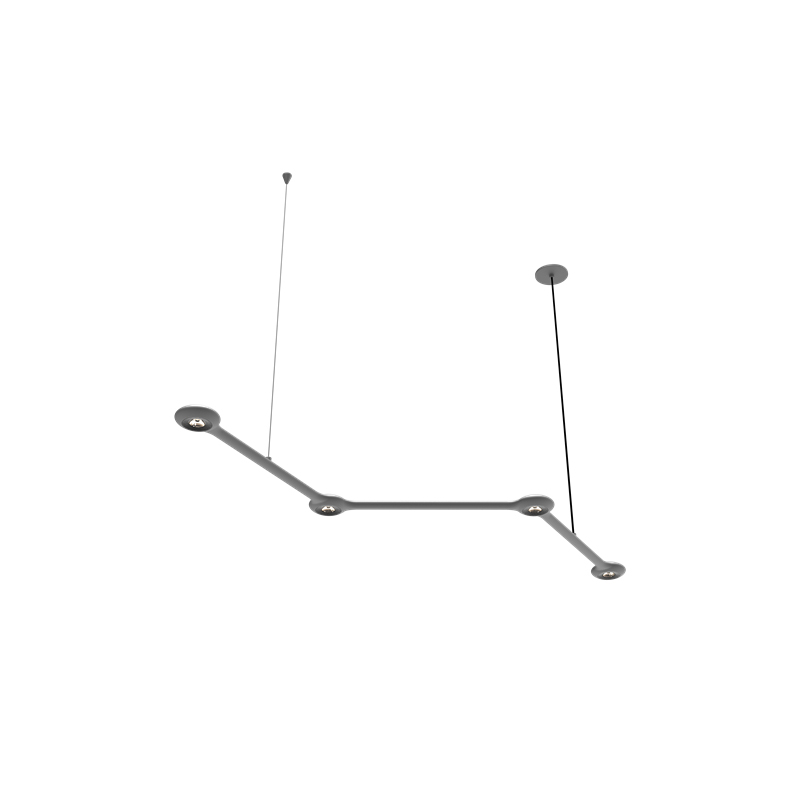

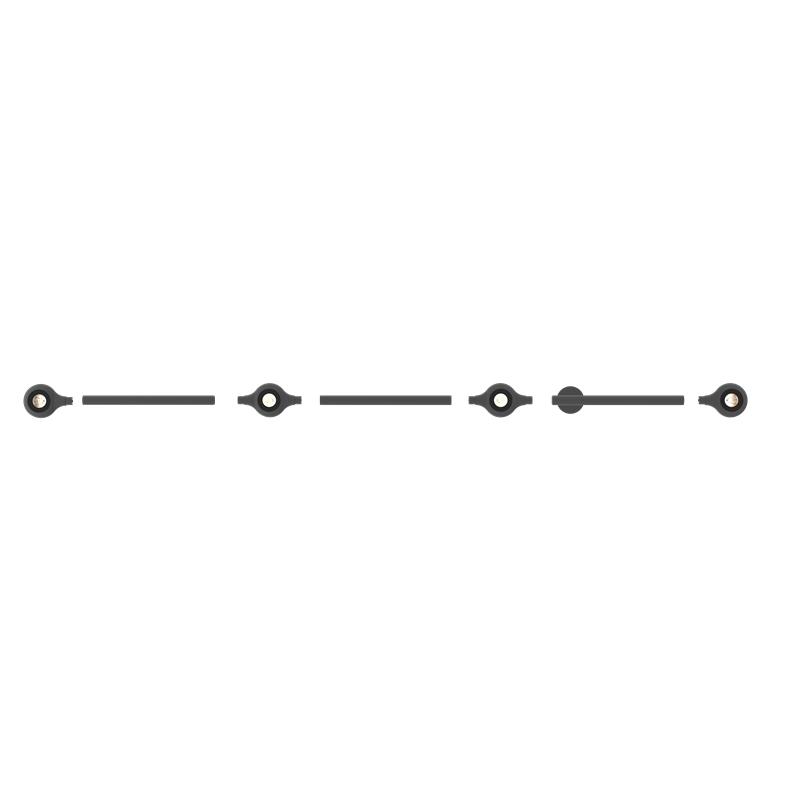

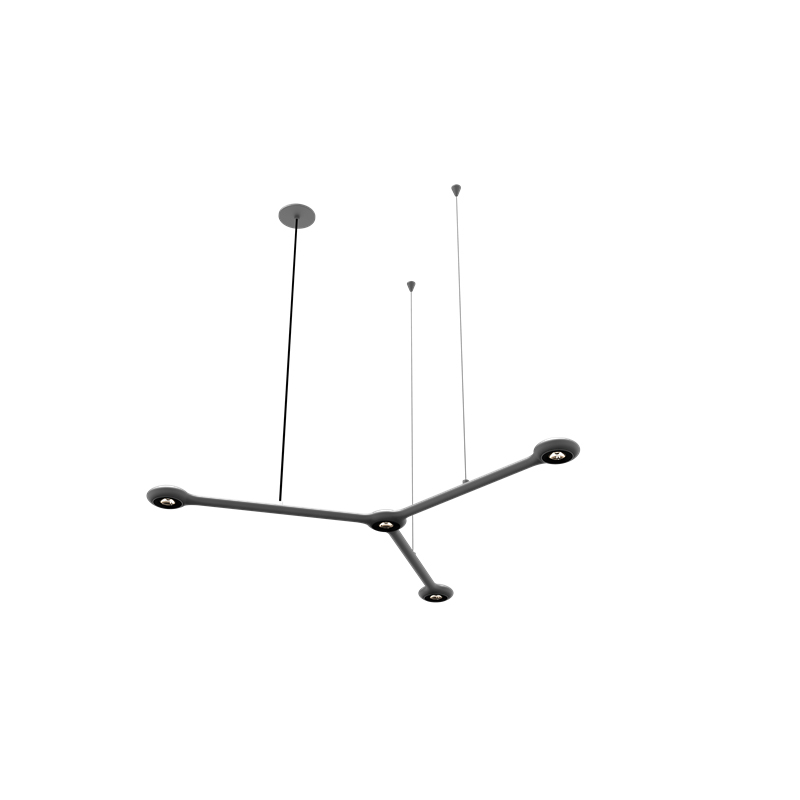

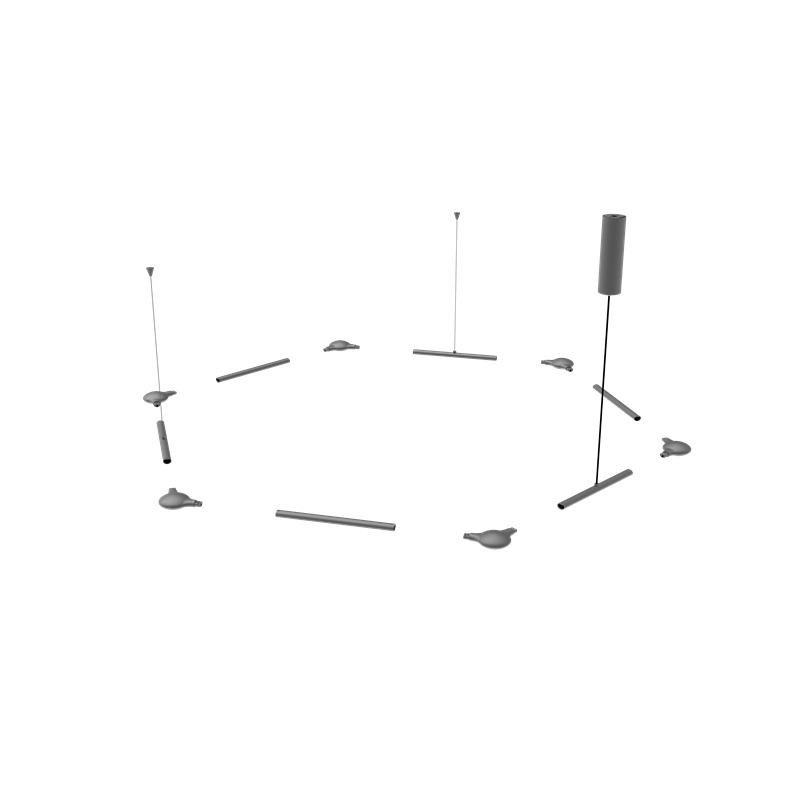

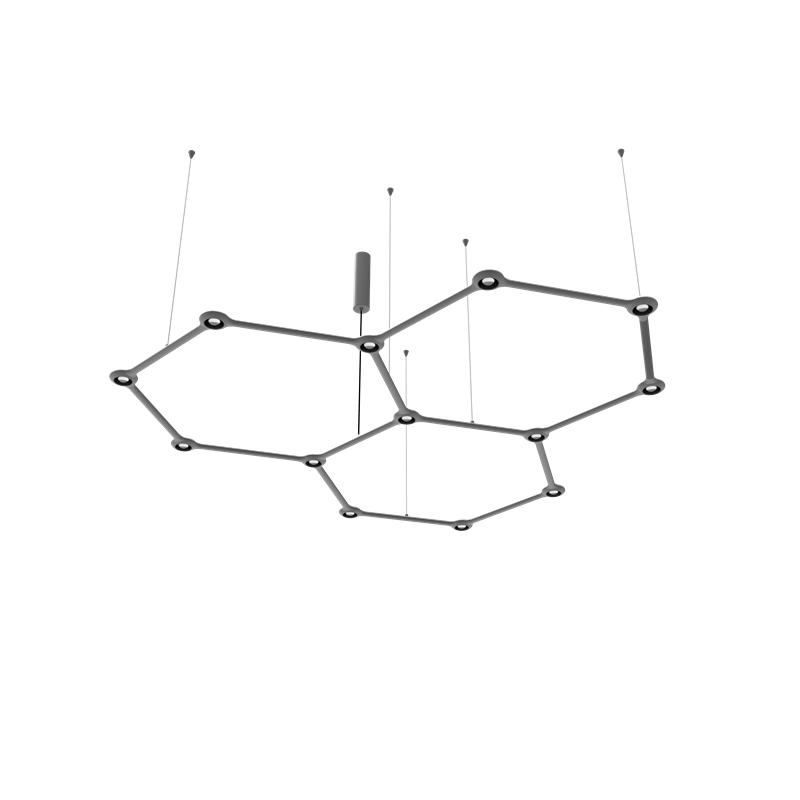

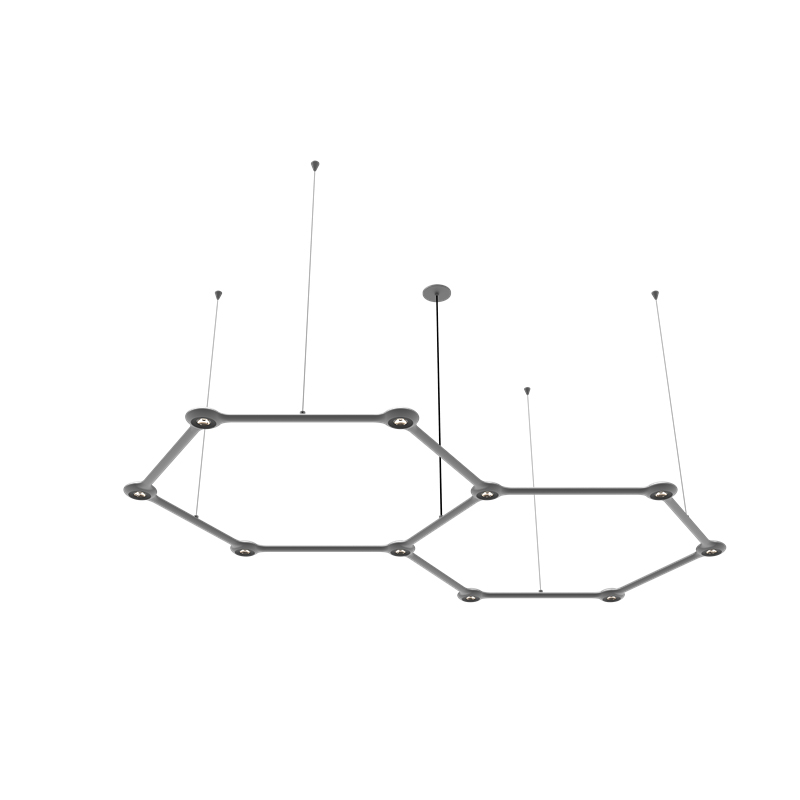

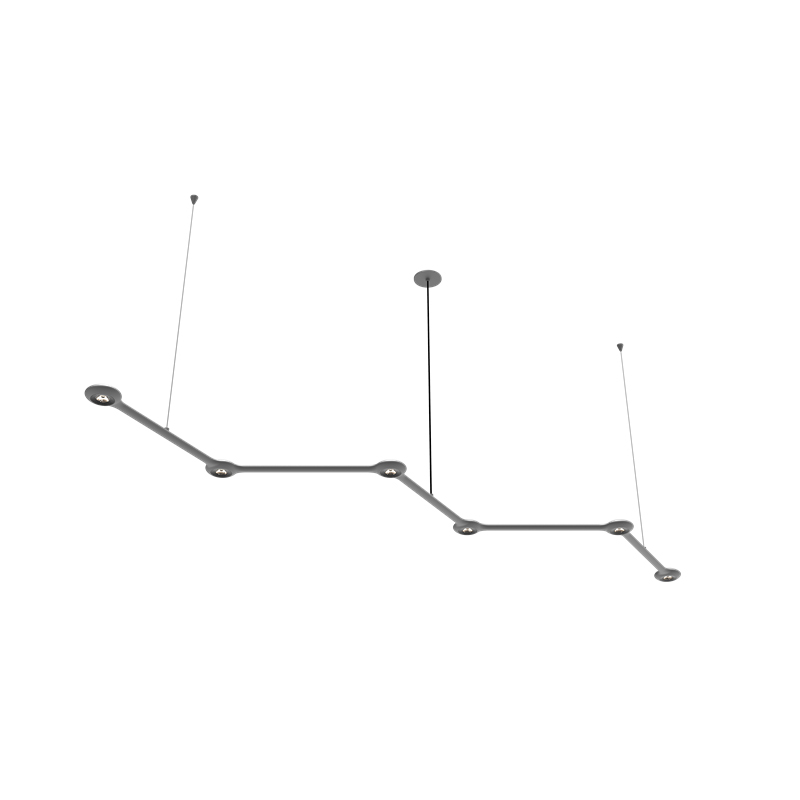

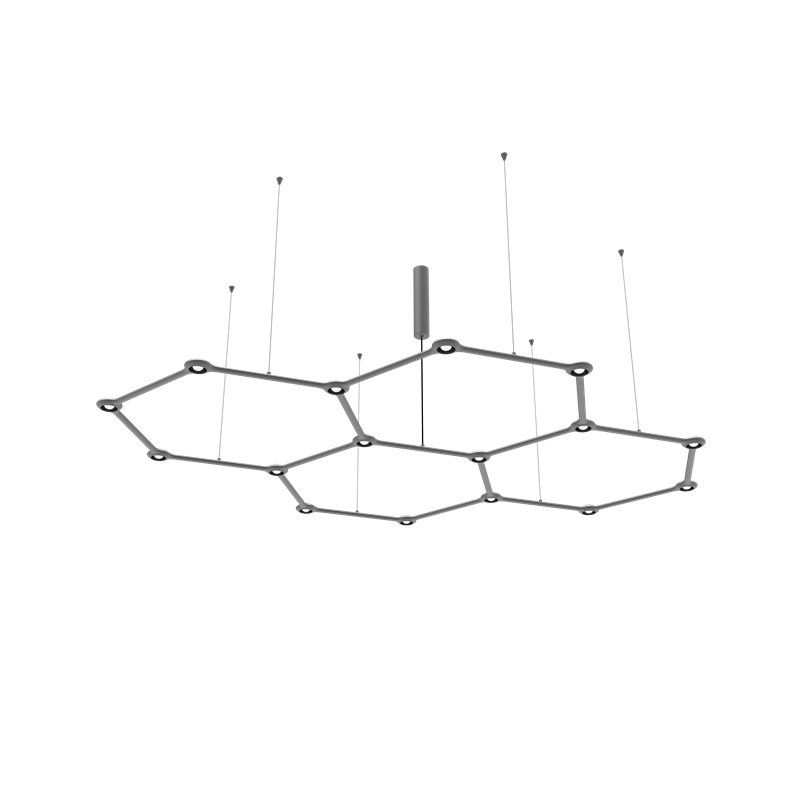

New design modular assembly LED pendant light, support free -assemble to make different design according to interior decoration. DC24V support dimming function. There are 2-way connector/3-way connector to make different shape.
Minimalist led pendant light, nordic pendant light, led pendant light for office/Kitchen
Office, meeting room, dining room, library, showroom, retail shop, bar, salon, etc.
| Picture | Model | Name | Power | Size | CCT | CRI | Color | Beam | LED Chip | Voltage | Materials | Remarks |
 |
R22-S078-01 | ending head | 6W | Φ78*111*30 mm | 2700k 3000K 4000K | 90 | carbon fiberspace grey goldenwhite | 15° 24° 36° 55° | Bridgelux | DC 24V | aluminum | |
 |
R22-D078-01 | ending head | 6W | Φ78*111*32 mm | 2700k 3000K 4000K | 90 | carbon fiberspace grey goldenwhite | convex glass 50° | Bridgelux | DC 24V | aluminum | |
 |
R22-S078-02 | straight head | 6W | Φ78*144*30 mm | 2700k 3000K 4000K | 90 | carbon fiberspace grey goldenwhite | 15° 24° 36° 55° | Bridgelux | DC 24V | aluminum | |
 |
R22-D078-02 | straight head | 6W | Φ78*144*32 mm | 2700k 3000K 4000K | 90 | carbon fiberspace grey goldenwhite | convex glass 50° | Bridgelux | DC 24V | aluminum | |
 |
R22-S078-03 | V head | 6W | Φ78*111*30 mm | 2700k 3000K 4000K | 90 | carbon fiberspace grey goldenwhite | 15° 24° 36° 55° | Bridgelux | DC 24V | aluminum | |
 |
R22-D078-03 | V head | 6W | Φ78*111*32 mm | 2700k 3000K 4000K | 90 | carbon fiberspace grey goldenwhite | convex glass 50° | Bridgelux | DC 24V | aluminum | |
 |
R22-S078-03 | three-way head | 6W | Φ144*30mm | 2700k 3000K 4000K | 90 | carbon fiberspace grey goldenwhite | 15° 24° 36° 55° | Bridgelux | DC 24V | aluminum | |
 |
R22-D078-03 | three-way head | 6W | Φ144*32mm | 2700k 3000K 4000K | 90 | carbon fiberspace grey goldenwhite | convex glass 50° | Bridgelux | DC 24V | aluminum | |
 |
R22-P030 | pole | / | 22*17*297mm | / | / | carbon fiberspace grey goldenwhite | / | / | / | aluminum | |
 |
R22-P030-S30 | pole with power box | 1-30W | box:Φ55*185mm pole:22*17*297 mm | / | / | carbon fiberspace grey goldenwhite | / | / | 220-242V | aluminum | used for 1-4pcs heads |
|
R22-P030-M60 | pole with power box | 1-60W | box:Φ55*217 pole:22*17*297mm | / | / | carbon fiberspace grey goldenwhite | / | / | 220-242V | aluminum | used for 5-8pcs heads |
|
R22-P030-M75 | pole with power box | 1-75W | box:Φ55*217 pole:22*17*297mm | / | / | carbon fiberspace grey goldenwhite | / | / | 220-242V | aluminum | used for 9-11pcs heads |
|
R22-P030-L150 | pole with power box | 1-150W | box:Φ55*275 pole:22*17*297mm | / | / | carbon fiberspace grey goldenwhite | / | / | 220-242V | aluminum | used for 12-21pcs heads |
 |
R22-PR030 | pole with recessed base | / | recessed base:Φ80*5mm pole:22*17*297mm | / | / | carbon fiberspace grey goldenwhite | / | / | DC 24V | aluminum | max for 21pcs heads,power supply is excluded |
 |
R22-PS030 | pole with suspend wire | / | base:Φ20*23 pole:22*17*297mm | / | / | carbon fiberspace grey goldenwhite | / | / | / | aluminum |
Free assmebly pendant light
Creative pendant light
DC24V dimming pendant light
Linear pendant light
Modern pendant light
| Place of Origin | China |
| Brand Name | Boyin |
| Product Name | LED pendant light |
| Model Number | R22 |
| IP Rated | IP20 |
| Life Span | 30000-50000Hrs |
| Whether to dim | Customized |
| Installation Way | Surface mounted |
| Certification | CE, ROHS, CB, SASO, SAA, RCM, UL, ENEC, EMC, EAC |
| Packaging Details | 20/30/50PCS per carton |
| Delivery Time | 10-20 days |
| Supply Ability | 10000pcs/months |
| Warranty | 3 years |
