Lugar ng PinagmulanChinaBrand NameBoyinPangalan ng ProduktoLED pendant lightModel NumberR22IP RatedIP20Life Span30000-50000HrsKung may dimmerCustomizedParaan ng Pag-installSurface mountedCertificationCE, ROHS, CB, SASO, SAA, RCM, UL, ENEC, EMC, EACPackaging Details20/...

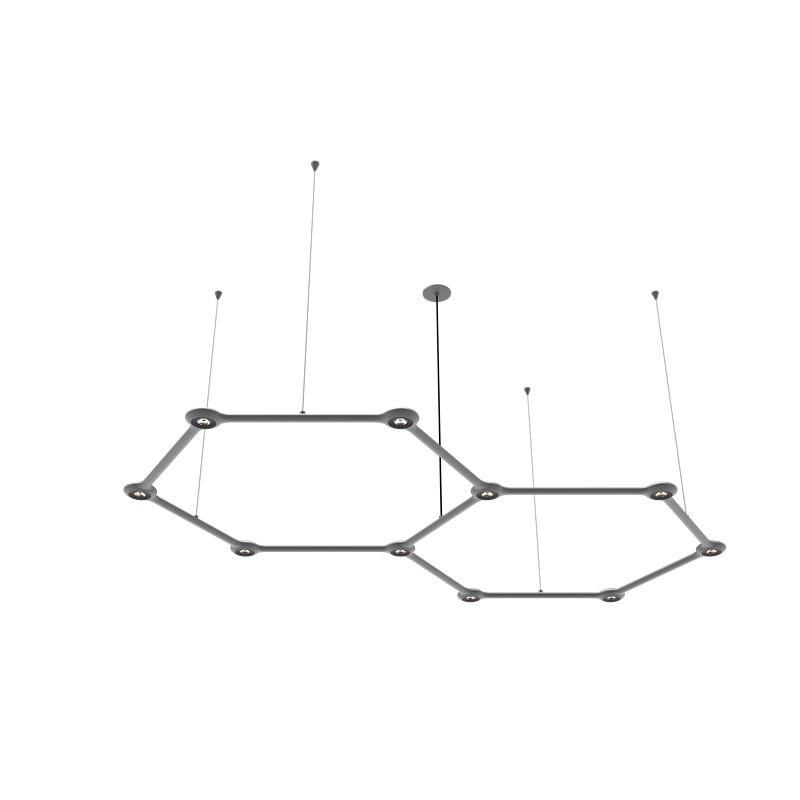

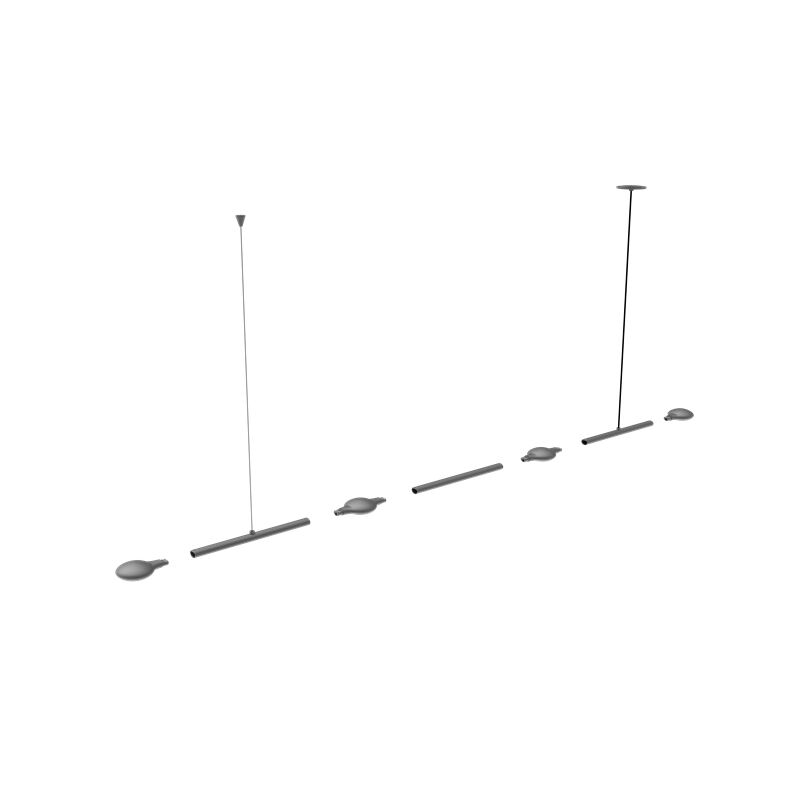

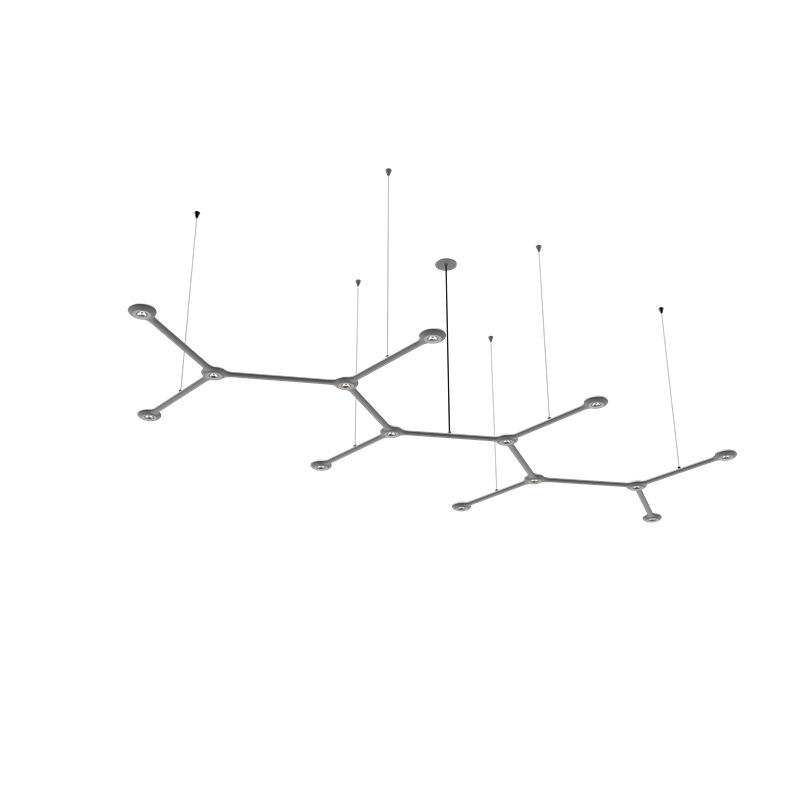

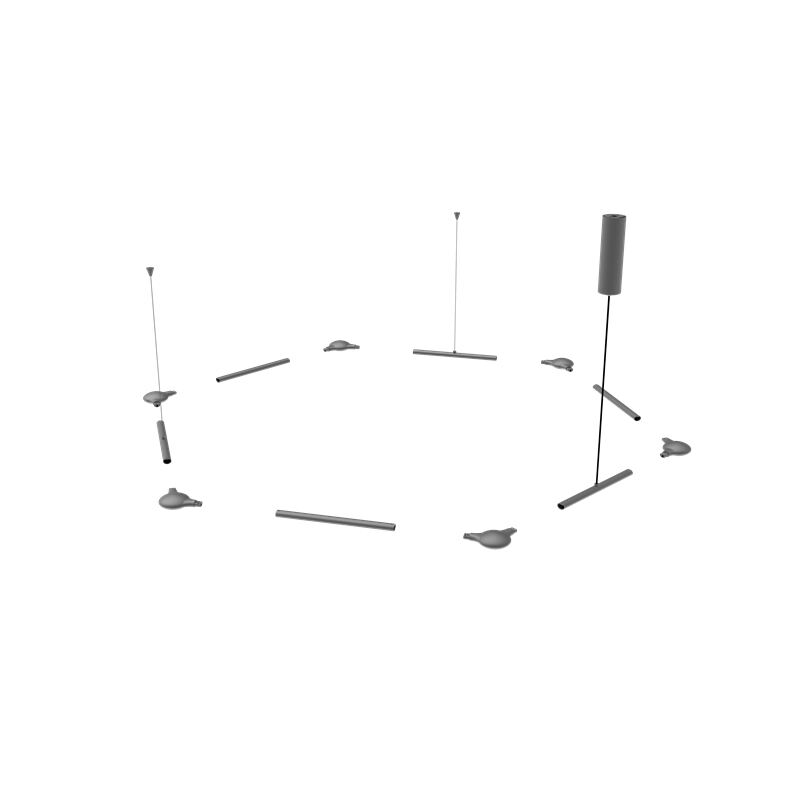

Bagong disenyo ng modular assembly LED pendant light, sumusuporta sa libreng pag-aayos para gumawa ng iba't ibang disenyo ayon sa interior decoration. Sumusuporta ang DC24V sa dimming function. Mayroong 2-way connector/3-way connector para gumawa ng iba't ibang hugis.
Minimalist LED pendant light, nordic pendant light, LED pendant light para sa opisina/kusina
Opisina, meeting room, dining room, library, showroom, retail shop, bar, salon, atbp.
| Larawan | Modelo | Pangalan | Kapangyarihan | Sukat | CCT | CRI | Kulay | Ang balbula | LED Chip | Boltahe | Mga Materyales | Mga Puna |
 |
R22-S078-01 | dulo | 6W | φ78*111*30 mm | 2700k 3000K 4000K | 90 | carbon fiberspace grey goldenwhite | 15° 24° 36° 55° | BridgeLux | DC 24V | aluminum | |
 |
R22-D078-01 | dulo | 6W | φ78*111*32 mm | 2700k 3000K 4000K | 90 | carbon fiberspace grey goldenwhite | convex glass 50° | BridgeLux | DC 24V | aluminum | |
 |
R22-S078-02 | straight head | 6W | φ78*144*30 mm | 2700k 3000K 4000K | 90 | carbon fiberspace grey goldenwhite | 15° 24° 36° 55° | BridgeLux | DC 24V | aluminum | |
 |
R22-D078-02 | straight head | 6W | φ78*144*32 mm | 2700k 3000K 4000K | 90 | carbon fiberspace grey goldenwhite | convex glass 50° | BridgeLux | DC 24V | aluminum | |
 |
R22-S078-03 | V head | 6W | φ78*111*30 mm | 2700k 3000K 4000K | 90 | carbon fiberspace grey goldenwhite | 15° 24° 36° 55° | BridgeLux | DC 24V | aluminum | |
 |
R22-D078-03 | V head | 6W | φ78*111*32 mm | 2700k 3000K 4000K | 90 | carbon fiberspace grey goldenwhite | convex glass 50° | BridgeLux | DC 24V | aluminum | |
 |
R22-S078-03 | three-way head | 6W | φ144*30mm | 2700k 3000K 4000K | 90 | carbon fiberspace grey goldenwhite | 15° 24° 36° 55° | BridgeLux | DC 24V | aluminum | |
 |
R22-D078-03 | three-way head | 6W | φ144*32mm | 2700k 3000K 4000K | 90 | carbon fiberspace grey goldenwhite | convex glass 50° | BridgeLux | DC 24V | aluminum | |
 |
R22-P030 | polyo | / | 22*17*297mm | / | / | carbon fiberspace grey goldenwhite | / | / | / | aluminum | |
 |
R22-P030-S30 | pole with power box | 1-30W | box:Φ55*185mm pole:22*17*297 mm | / | / | carbon fiberspace grey goldenwhite | / | / | 220-242V | aluminum | ginagamit para sa 1-4 na ulo |
|
R22-P030-M60 | pole with power box | 1-60W | kaha:Φ55*217 poste:22*17*297mm | / | / | carbon fiberspace grey goldenwhite | / | / | 220-242V | aluminum | ginagamit para sa 5-8 na ulo |
|
R22-P030-M75 | pole with power box | 1-75W | kaha:Φ55*217 poste:22*17*297mm | / | / | carbon fiberspace grey goldenwhite | / | / | 220-242V | aluminum | ginagamit para sa 9-11 na ulo |
|
R22-P030-L150 | pole with power box | 1-150W | kaha:Φ55*275 poste:22*17*297mm | / | / | carbon fiberspace grey goldenwhite | / | / | 220-242V | aluminum | ginagamit para sa 12-21pcs na ulo |
 |
R22-PR030 | poste na may nakalukot na base | / | nakalukot na base:Φ80*5mm poste:22*17*297mm | / | / | carbon fiberspace grey goldenwhite | / | / | DC 24V | aluminum | max para sa 21pcs na ulo, hindi kasama ang power supply |
 |
R22-PS030 | poste na may nakabitin na kable | / | base:Φ20*23 poste:22*17*297mm | / | / | carbon fiberspace grey goldenwhite | / | / | / | aluminum |
Libreng assmebly pendant light
Creative pendant light
Dimming na pendant light na DC24V
Lihis na pendenteng ilaw
Modernong pendant light
| Lugar ng Pinagmulan | Tsina |
| Pangalan ng Tatak | Boyin |
| Pangalan ng Produkto | Led Pendant Light |
| Model Number | R22 |
| IP Rated | IP20 |
| Haba ng Buhay | 30000-50000 Oras |
| Kung magdim o hindi | Customized |
| Paraan ng pag-install | Naka-install sa ibabaw |
| Sertipikasyon | CE, ROHS, CB, SASO, SAA, RCM, UL, ENEC, EMC, EAC |
| Mga Detalye ng Pagbabalot | 20/30/50BILANG per kartera |
| Oras ng Pagpapadala | 10-20 araw |
| Kakayahang Suplay | 10000pcs/months |
| Warranty | 3 taon |
